PFC Intelligent Power Module, 600V, 50A
Key Features
• UL Certified No.E209024 (UL1557)
• 600 V - 50 A 2-Phase Interleaved PFC with Integral Gate Driver and Protection
• Very Low Thermal Resistance Using Al2O3DBC Substrate
• Full-Wave Bridge Rectifier and High-Performance Output Diode
• Optimized for 20kHz Switching Frequency
• Built-in NTC Thermistor for Temperature Monitoring
• Isolation Rating: 2500 Vrms/min
Description
AI

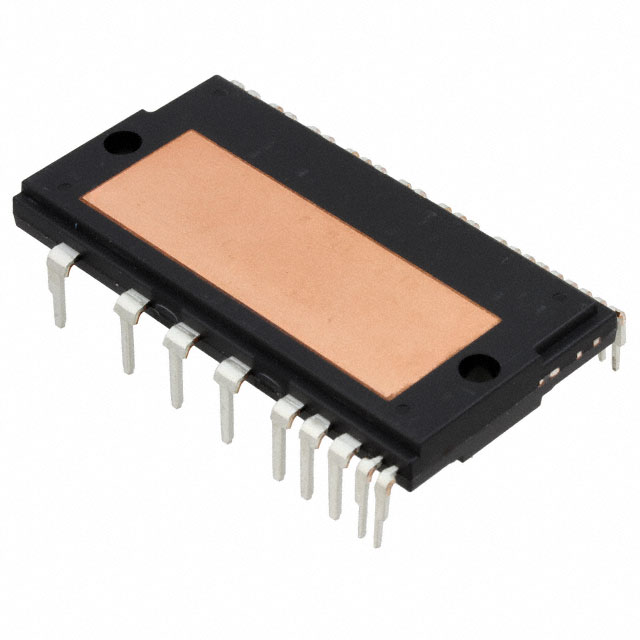

The FPAM50LH60 is a PFC SPM®2 module providing a fully-featured, high-performance Interleaved PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature a fullwave rectifier and high-performance output diodes for additional space savings and mounting convenience.
