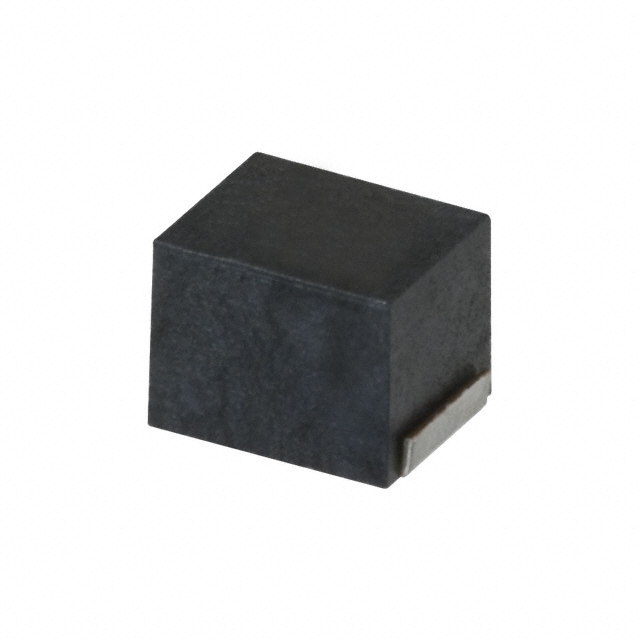

NLCV32-PFRD Series

Catalog

RF INDUCTORS - SMD SUGGESTED ALTERNATE NLCV32T-1R0M-EFRD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Inductance	Shielding	Tolerance	Material - Core	Inductance Frequency - Test	Mounting Type	Supplier Device Package	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Type	Ratings	Package / Case	Package / Case	Q @ Freq	Frequency - Self Resonant
TDK Corporation NLCV32T-1R0M-PFRD	2.4 mm	0.094 in	2.5 mm	0.098 in	3.2 mm	0.126 "	1.7 A	1 µH	Unshielded	20 %	Ferrite	7.96 MHz	Surface Mount	1210	3225	125 °C	-40 C	66 mOhm	Drum Core Wirewound	AEC-Q200	1210	3225 Metric	7.96 MHz 15	100 MHz
TDK Corporation NLCV32T-6R8M-PFRD	2.4 mm	0.094 in	2.5 mm	0.098 in	3.2 mm	0.126 "	700 mA	6.8 µH	Unshielded	20 %	Ferrite	7.96 MHz	Surface Mount	1210	3225	125 °C	-40 C	348 mOhm	Drum Core Wirewound	AEC-Q200	1210	3225 Metric	7.96 MHz 15	38 MHz
TDK Corporation NLCV32T-3R3M-PFRD	2.4 mm	0.094 in	2.5 mm	0.098 in	3.2 mm	0.126 "	1 A	3.3 µH	Unshielded	20 %	Ferrite	7.96 MHz	Surface Mount	1210	3225	125 °C	-40 C	192 mOhm	Drum Core Wirewound	AEC-Q200	1210	3225 Metric	7.96 MHz 15	54 MHz
