MNGI14 Series

Catalog

CONN QC RCPT 14-16AWG 0.25 100PC

Part	Insulation Diameter	Insulation Diameter	Length - Overall [x]	Length - Overall [x]	Gender	Terminal Type	Mounting Type	Insulation	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Color	Tab Width [x]	Tab Width [x]	Termination	Tab Thickness	Tab Thickness	Contact Material
3M Electronic Specialty MNGI14-250DFIX-BOTTLE	0.145 in	3.68 mm	0.83 in	21.08 mm	Female	Standard	Free Hanging (In-Line)	Fully Insulated	Tin	14 AWG	16 AWG	Blue	6.35 mm	0.25 in	Crimp	0.81 mm	0.032 in	Brass

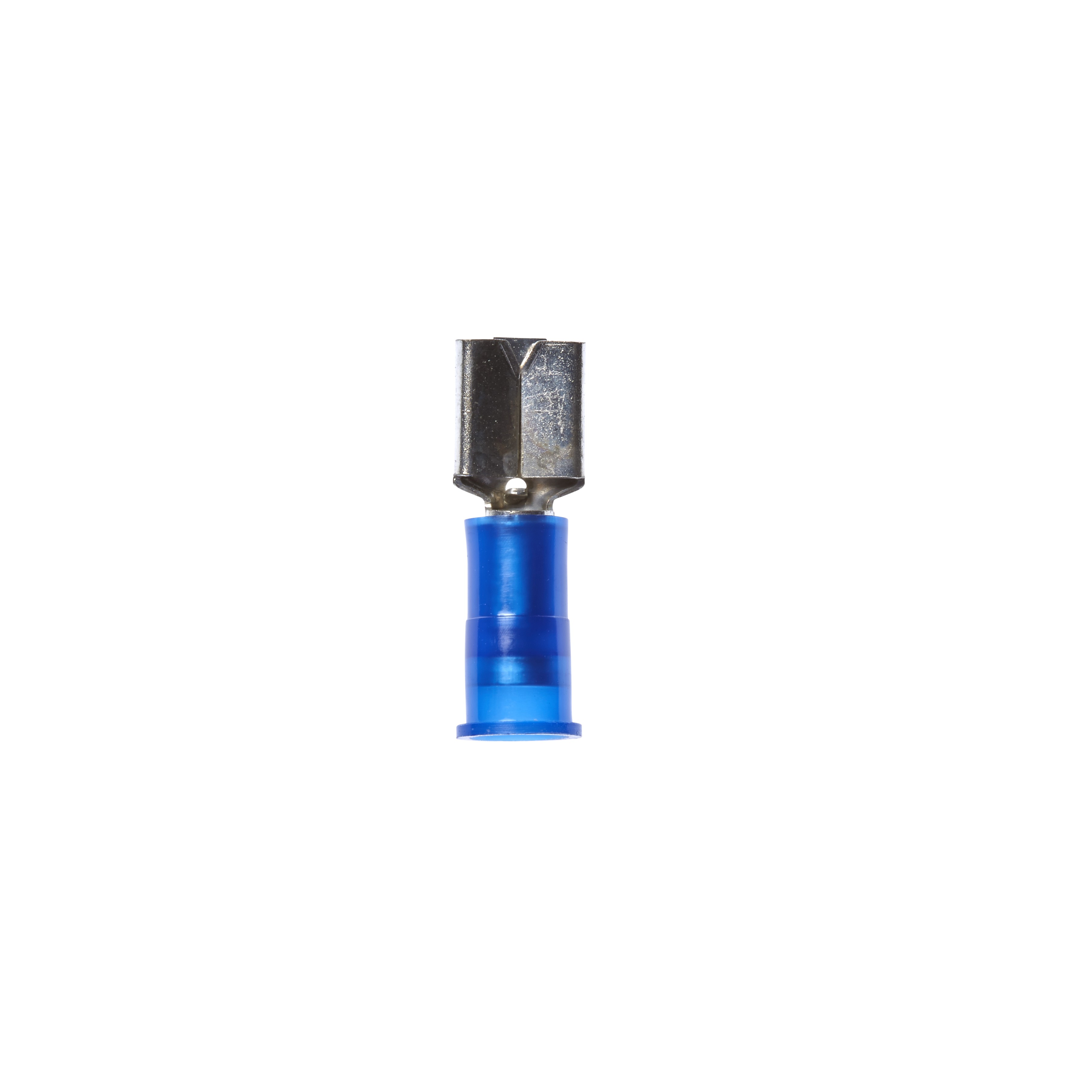

3M Electronic Specialty MNGI14-250DFK	0.145 in	3.68 mm	0.83 in	21.08 mm	Female	Standard	Free Hanging (In-Line)	Non-Mating End Insulated	Tin	14 AWG	16 AWG	Blue	6.35 mm	0.25 in	Crimp	0.81 mm	0.032 in	Brass
3M Electronic Specialty MNGI14-250DFIK	0.145 in	3.68 mm	0.83 in	21.08 mm	Female	Standard	Free Hanging (In-Line)	Fully Insulated	Tin	14 AWG	16 AWG	Blue	6.35 mm	0.25 in	Crimp	0.81 mm	0.032 in	Brass

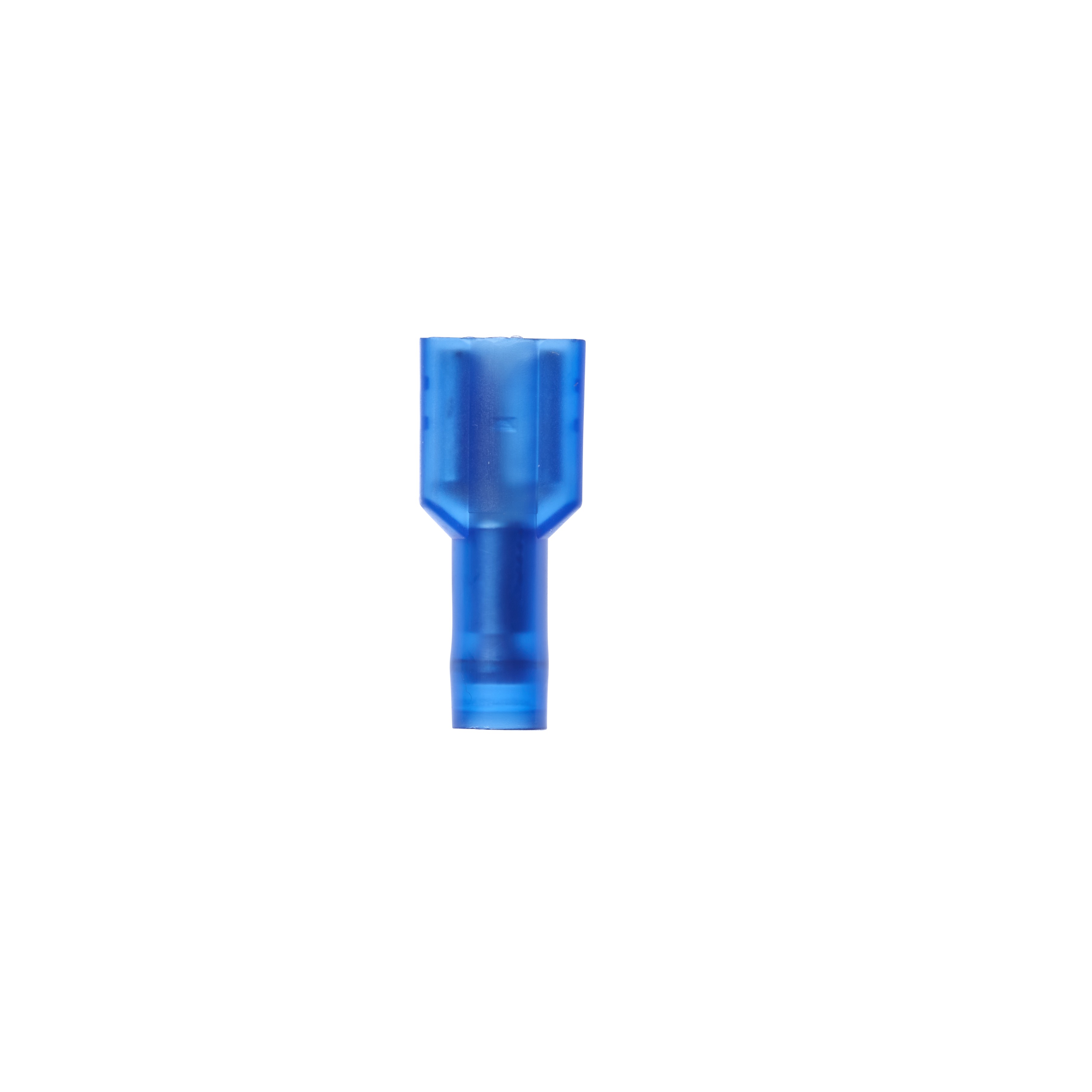

3M Electronic Specialty MNGI14-250DFX-BOTTLE	0.145 in	3.68 mm	0.83 in	21.08 mm	Female	Standard	Free Hanging (In-Line)	Non-Mating End Insulated	Tin	14 AWG	16 AWG	Blue	6.35 mm	0.25 in	Crimp	0.81 mm	0.032 in	Brass
3M Electronic Specialty MNGI14-187DFIX-BOTTLE	0.145 in	3.68 mm	0.81 "	20.57 mm	Female	Standard	Free Hanging (In-Line)	Fully Insulated	Tin	14 AWG	16 AWG	Blue	4.75 mm	0.187 in	Crimp	0.51 mm	0.02 in	Brass
