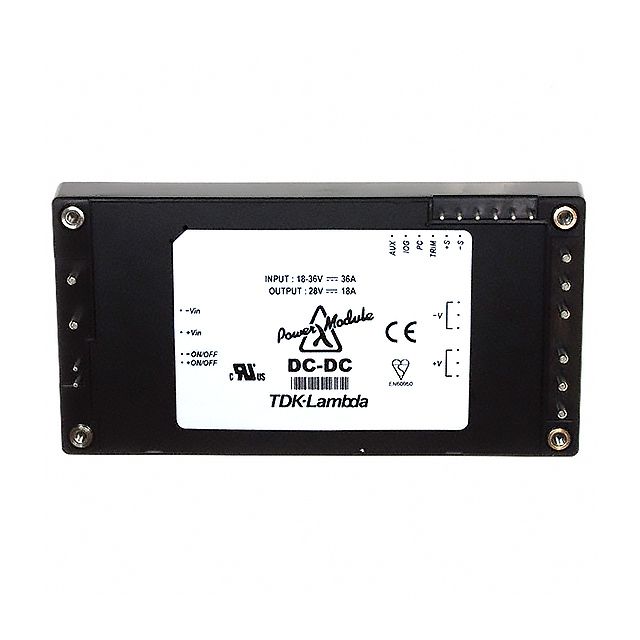

PAF500 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, FULL BRICK, DIP, 504 W, 1 OUTPUT, 12 V

Part	Applications	Efficiency	Voltage - Input (Max) [Max]	Power (Watts)	Type	Features	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Output 1	Current - Output (Max)	Number of Outputs	Mounting Type	Control Features	Current - Output (Max) [Max]
TDK Corporation PAF500F48-12	ITE (Commercial)	89 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	12 V	42 A	1	Through Hole	Active Low Enable
TDK Corporation PAF500F48-5	ITE (Commercial)	83 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	5 V		1	Through Hole	Active Low Enable	80 A
TDK Corporation PAF500F48-3.3/T	ITE (Commercial)	78 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	3.3 V		1	Through Hole	Active Low Enable	80 A
TDK Corporation PAF500F24-28/T	ITE (Commercial)	90 %	36 V	500 W	Isolated Module	OCP OVP Remote On/Off	18 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	28 V		1	Through Hole	Active Low Enable	18 A
TDK Corporation PAF500F48-28	ITE (Commercial)	90 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	28 V		1	Through Hole	Active Low Enable	18 A
TDK Corporation PAF500F48-5/T	ITE (Commercial)	83 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	5 V		1	Through Hole	Active Low Enable	80 A
TDK Corporation PAF500F48-28/T	ITE (Commercial)	90 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	28 V		1	Through Hole	Active Low Enable	18 A
TDK Corporation PAF500F48-12/T	ITE (Commercial)	89 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	12 V	42 A	1	Through Hole	Active Low Enable
TDK Corporation PAF500F24-12	ITE (Commercial)	89 %	36 V	500 W	Isolated Module	OCP OVP Remote On/Off	19 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	12 V	42 A	1	Through Hole	Active Low Enable
TDK Corporation PAF500F48-3.3	ITE (Commercial)	78 %	76 V	500 W	Isolated Module	OCP OVP Remote On/Off	36 V	-40 C	100 °C	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Full Brick	3.3 V		1	Through Hole	Active Low Enable	80 A
