10GX53F Series
Manufacturer: Belden Inc.
Beta
⌘K

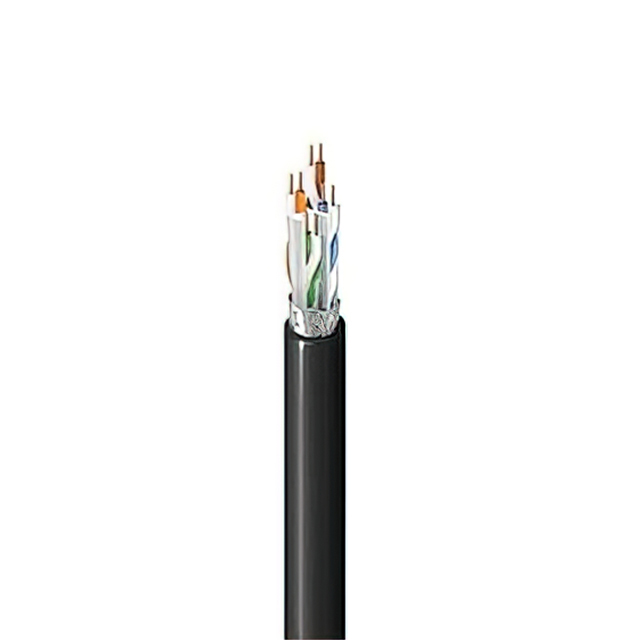

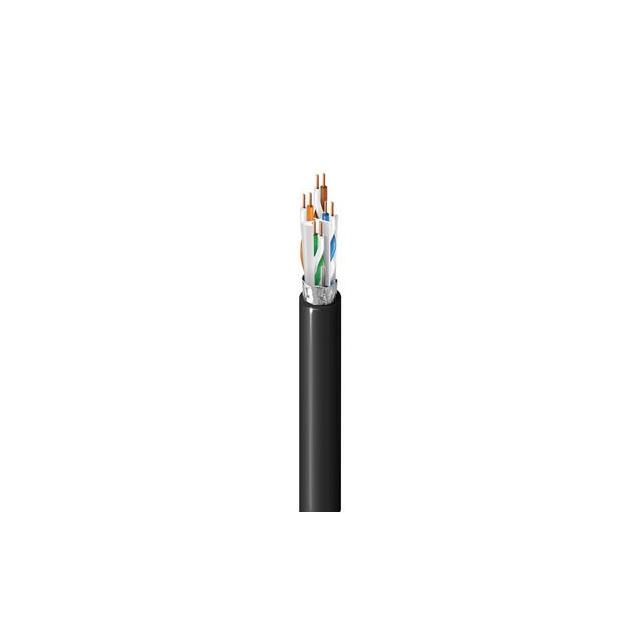

CAT6A 4PR F/UTP CMP REEL
| Part | Shield Material | Shield Coverage | Wire Gauge | Shield Type | Features | Conductor Material | Voltage | Conductor Insulation | Ratings | Cable Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Jacket (Insulation) Material | Usage | Number of Conductors | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | 23 AWG | Foil | Drain Wire | Copper Bare | 300 VDC | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Multi-Pair Cat6a | 304.8 m | 1000 ft | 6.99 mm | 0.275 in | Solid | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Network | 8 | Black |
 Belden Inc. | Aluminum Polyester | 100 % | 23 AWG | Foil | Drain Wire | Copper Bare | 300 VDC | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Multi-Pair Cat6a | 304.8 m | 1000 ft | 6.99 mm | 0.275 in | Solid | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Network | 8 | Gray |
 Belden Inc. | Aluminum Polyester | 100 % | 23 AWG | Foil | Drain Wire | Copper Bare | 300 VDC | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Multi-Pair Cat6a | 304.8 m | 1000 ft | 6.99 mm | 0.275 in | Solid | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Network | 8 | Yellow |
