EL8176 Series

Micropower Single Supply Rail-to-Rail Input-Output Precision Op Amp

Manufacturer: Renesas Electronics Corporation

Catalog

Micropower Single Supply Rail-to-Rail Input-Output Precision Op Amp

Part	Current - Input Bias	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Voltage - Supply Span (Min) [Min]	Slew Rate	Current - Supply	-3db Bandwidth	Number of Circuits	Output Type	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Input Offset	Mounting Type	Gain Bandwidth Product	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type
Renesas Electronics Corporation EL8176FSZ	500 pA	8-SOIC	5.5 V	2.4 V	0.13 V/µs	55 µA	1 MHz	1	Rail-to-Rail	8-SOIC	3.9 mm	0.154 in	25 çV	Surface Mount	400 kHz	31 mA	125 °C	-40 °C	General Purpose

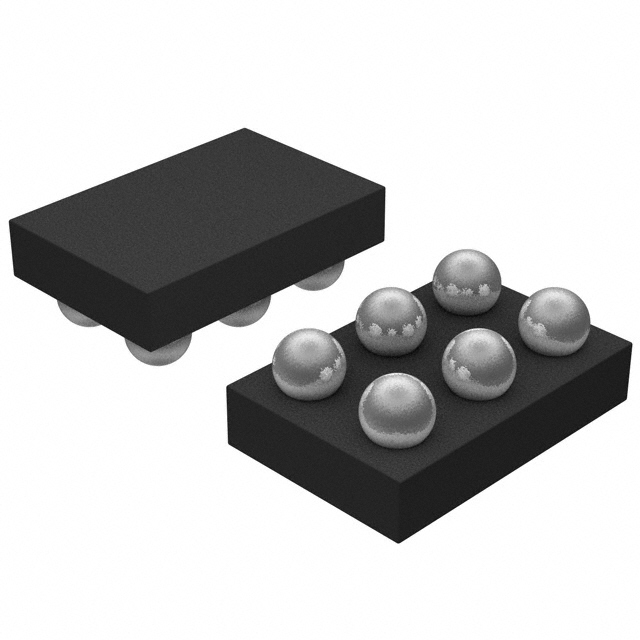

Renesas Electronics Corporation EL8176FIZ-T7	500 pA	6-WLCSP (3x2)	5.5 V	2.4 V	0.13 V/µs	85 µA	1 MHz	1	Rail-to-Rail	6-UFBGA WLCSP			75 µV	Surface Mount	400 kHz	31 mA	125 °C	-40 °C	General Purpose

Catalog

Micropower Single Supply Rail-to-Rail Input-Output Precision Op Amp

Description

The EL8176 is a precision low power, operational amplifier. The device is optimized for single supply operation between 2. 4V to 5. 5V. The EL8176 draws minimal supply current while meeting excellent DC-accuracy noise and output drive specifications. Competing devices seriously degrade these parameters to achieve micropower supply current. The EL8176 can be operated from one lithium cell or two Ni-Cd batteries. The input range includes both positive and negative rail. The output swings to both rails.
