745-136 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 136POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Number of Rows [custom]	Contact Type	Read Out	Number of Positions/Bay/Row	Card Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Material	Color	Gender	Card Thickness [Max]	Card Thickness [Min]	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 745-136-541-206	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-545-201	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-520-201	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám

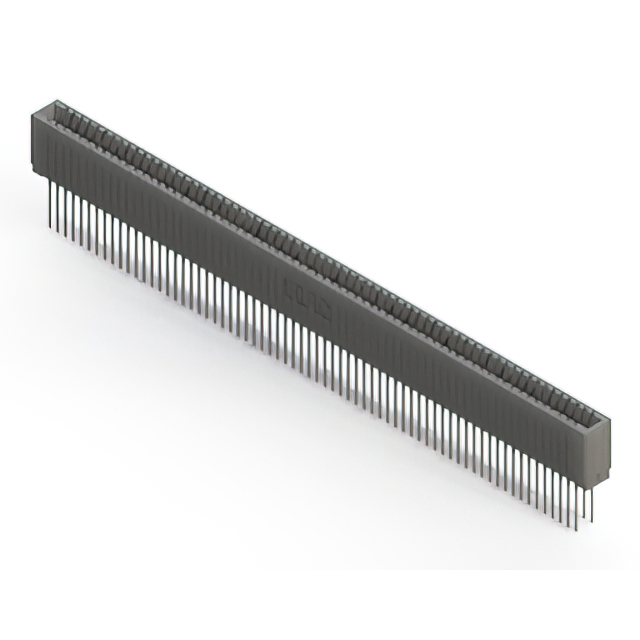

EDAC Inc. 745-136-540-201	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-520-206	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-522-201	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-525-201	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-541-201	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 745-136-525-206	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám

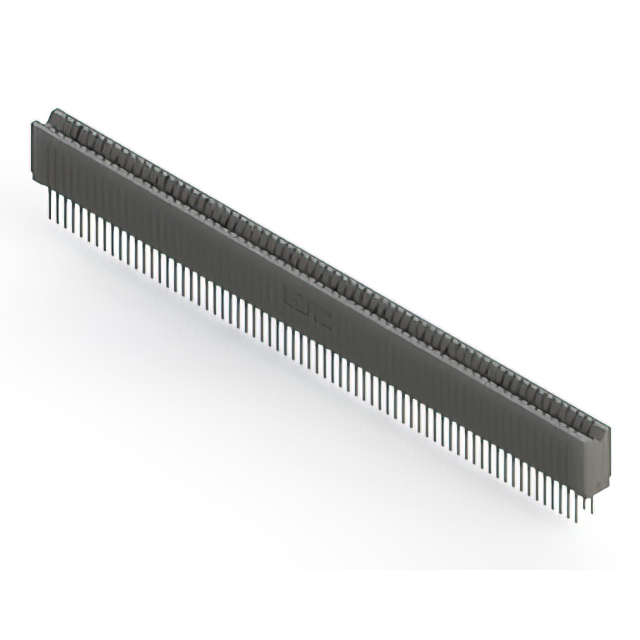

EDAC Inc. 745-136-522-206	Polyester Thermoplastic	2	136	2	Cantilever	Dual	68	Non Specified - Dual Edge	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Black	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	30 Áin	0.76 Ám
