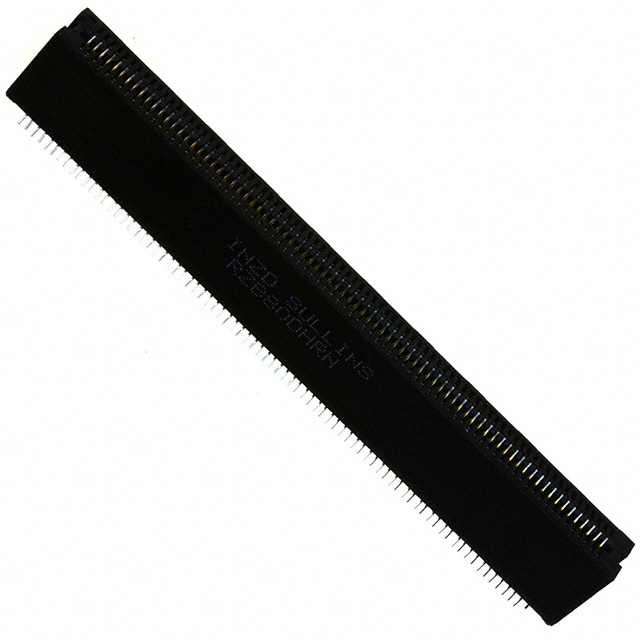

RZB80 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 160POS 0.050
| Part | Material - Insulation | Color | Mounting Type | Contact Material | Number of Rows [custom] | Card Thickness | Card Thickness | Pitch | Pitch | Features | Card Type | Number of Positions/Bay/Row | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Read Out | Number of Positions | Contact Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Black | Board Edge Straddle Mount | Phosphor Bronze | 2 | 1.57 mm | 0.062 in | 0.05 in | 1.27 mm | Card Extender | Non Specified - Dual Edge | 80 | Gold | 0.25 Ám | 10 Áin | Solder | Dual | 160 | Hairpin Bellows | Female | -65 ░C | 125 °C |
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Black | Through Hole | Phosphor Bronze | 2 | 1.57 mm | 0.062 in | 0.05 in | 1.27 mm | Non Specified - Dual Edge | 80 | Gold | 0.25 Ám | 10 Áin | Solder Staggered | Dual | 160 | Hairpin Bellows | Female | -65 ░C | 125 °C |
