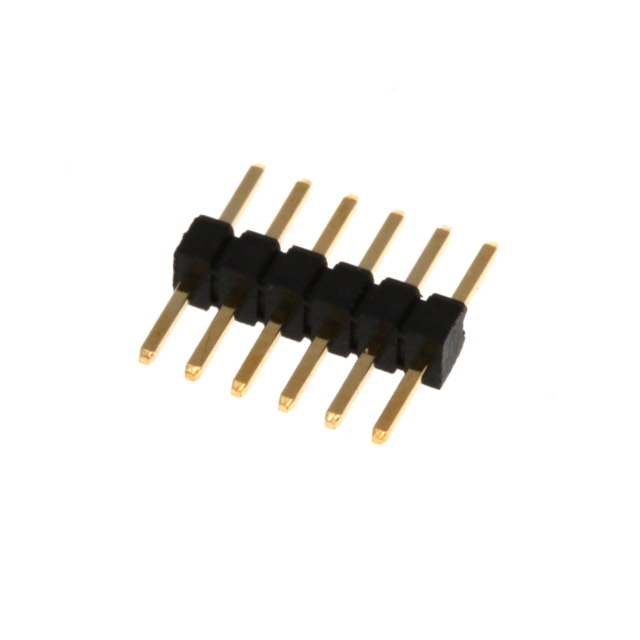

PR20B06VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, SINGLE ROW, 1.2
| Part | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Type | Overall Contact Length | Overall Contact Length | Fastening Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Shape | Contact Finish Thickness - Mating | Contact Finish - Mating | Mounting Type | Contact Material | Connector Type | Number of Rows | Shrouding | Insulation Material | Contact Length - Post [custom] | Contact Length - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | All | -40 C | 105 ░C | 3 mm | 0.118 in | Black | Male Pin | 7.3 mm | 0.287 in | Push-Pull | 6 | 1.27 mm | 0.05 in | 0.059 in | 1.5 mm | Square | Flash | Gold | Through Hole | Copper Zinc | Header | 1 | Unshrouded | Polyethylene | 0.11 in | 2.79 mm | Solder |
