840 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN IC DIP SOCKET 40POS GOLD
| Part | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Contact Material - Post [custom] | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions or Pins (Grid) | Type [custom] | Type [custom] | Type | Housing Material | Pitch - Post | Pitch - Post | Contact Finish Thickness - Post | Contact Finish - Post | Contact Finish - Mating | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

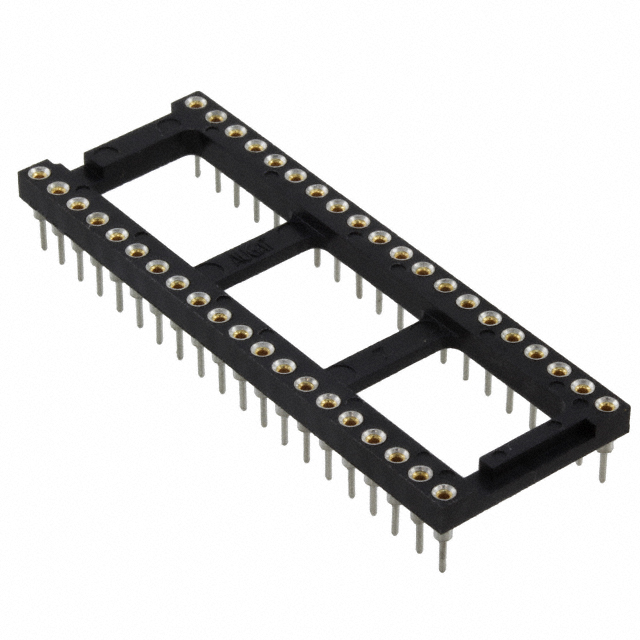

 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 10 mOhm | UL94 V-0 | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | Copper | Flash | -55 C | 105 ░C | Open Frame | 40 40 | 15.24 mm | 0.6 in | DIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | Flash | Gold | Gold | Solder | |

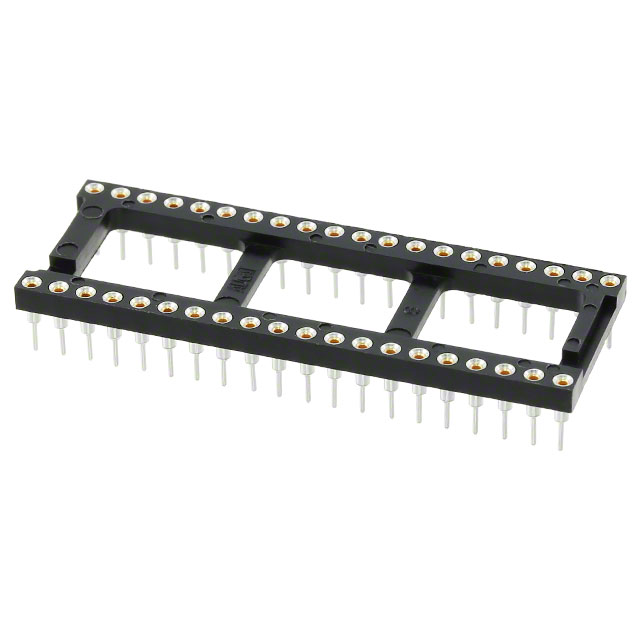

 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 10 mOhm | UL94 V-0 | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Copper Alloy | -55 C | 105 ░C | Open Frame | 40 | 15.24 mm | 0.6 in | DIP | Polyester | 0.1 in | 2.54 mm | Tin-Lead | Gold | Solder | 3 A |
