337-017 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 17POS 0.156

...

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Mounting Type	Contact Material	Card Type	Gender	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Color	Read Out	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Features

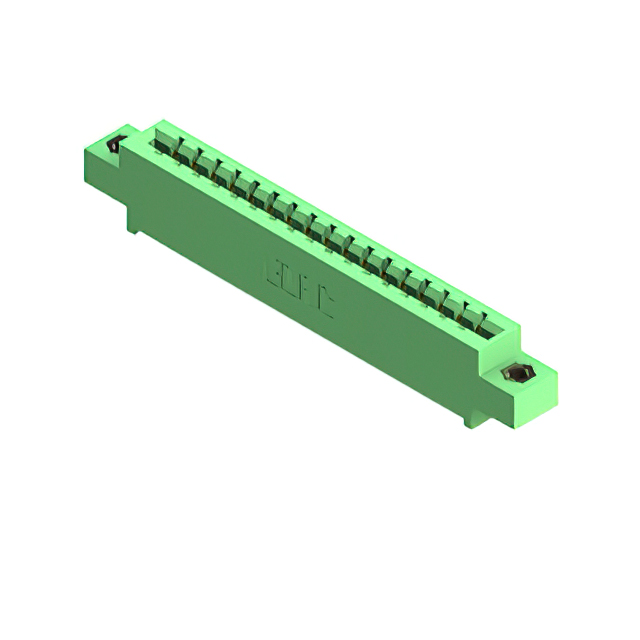

EDAC Inc. 337-017-542-607	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	M3 Threaded Insert Top Mount Opening	Wire Wrap	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-017-540-102	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Wire Wrap	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 337-017-542-604	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin		Wire Wrap	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 "

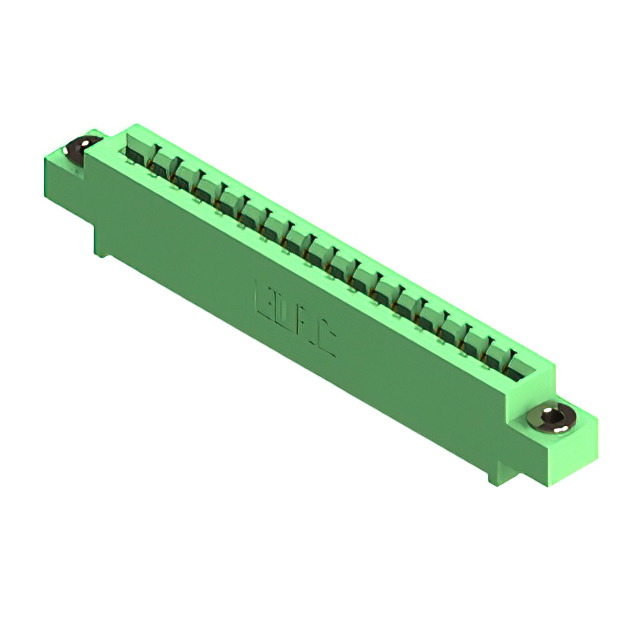

EDAC Inc. 337-017-524-603	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	Solder	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	2.95 mm	0.116 "

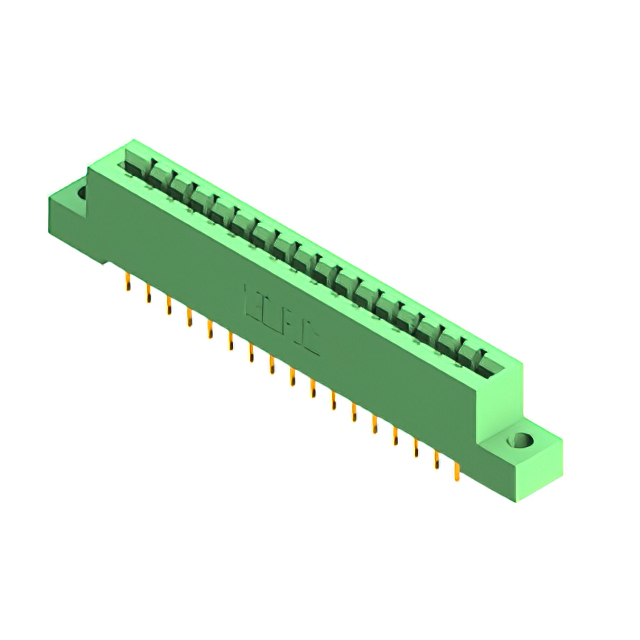

EDAC Inc. 337-017-558-104	1	Polyester Thermoplastic	3.96 mm	0.156 in	Right Angle Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Wire Wrap	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 "

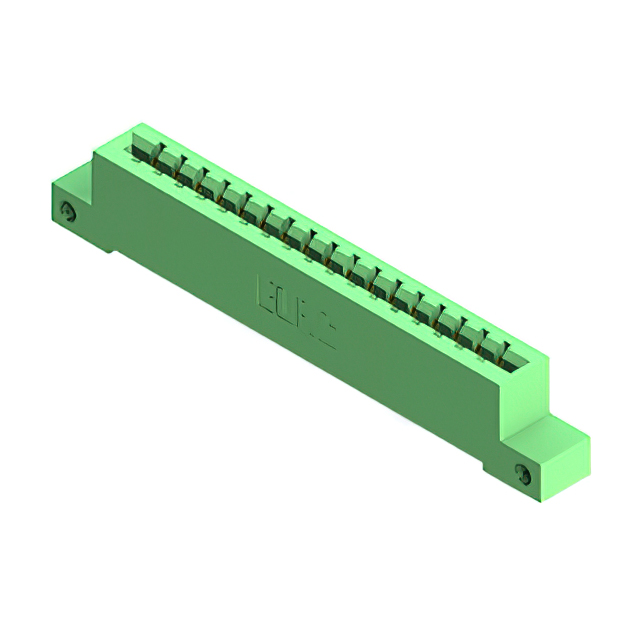

EDAC Inc. 337-017-500-112	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 337-017-544-104	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Wire Wrap	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 "

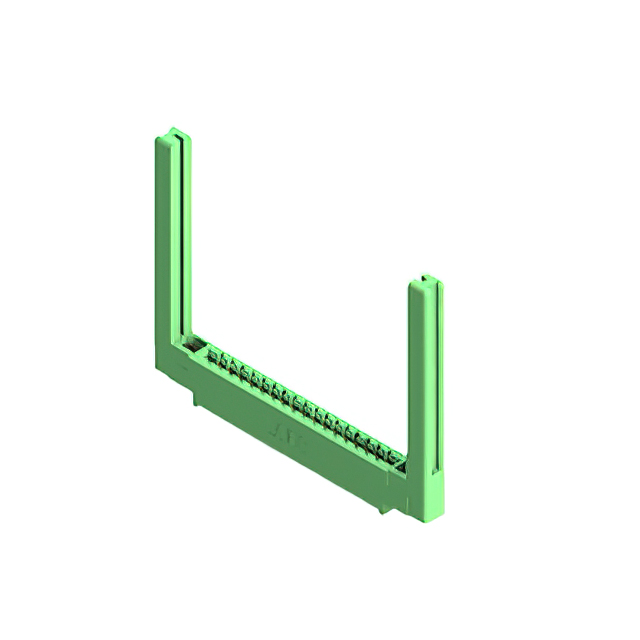

EDAC Inc. 337-017-559-658	1	Polyester Thermoplastic	3.96 mm	0.156 in	Right Angle Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening	Wire Wrap	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Guides
EDAC Inc. 337-017-524-602	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin		Solder	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "

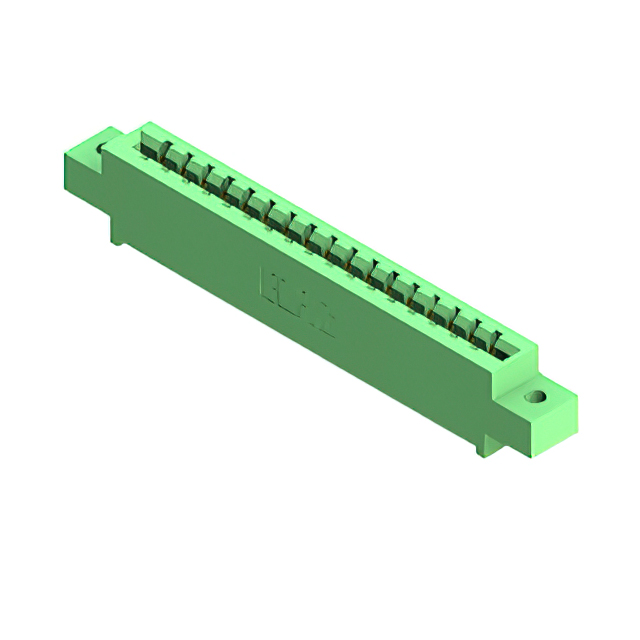

EDAC Inc. 337-017-523-602	1	Polyester Thermoplastic	3.96 mm	0.156 in	Through Hole	Copper Alloy	Non Specified - Single Edge	Female	Gold	17	0.25 Ám	10 Áin		Solder	1	-40 C	105 ░C	Cantilever	Green	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
