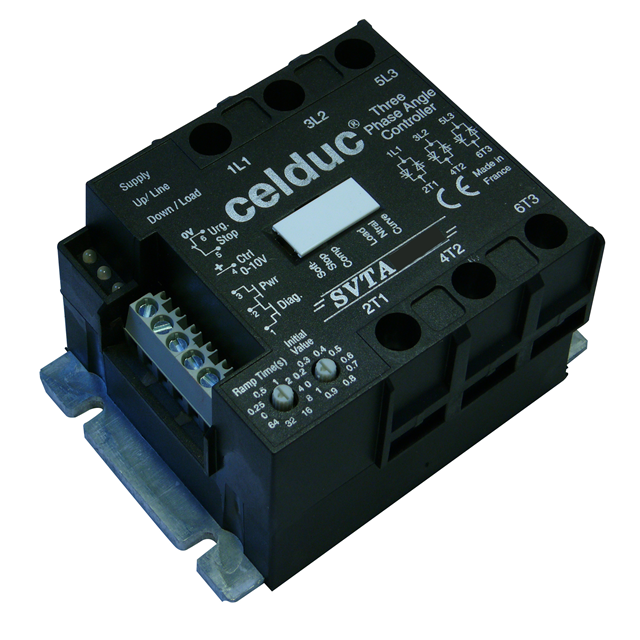

SVTA46 Series
Manufacturer: Celduc Inc.
Beta
⌘K
SSR RELAY SPST-NO 50A 200-480V
| Part | Output Type | Voltage - Input (DC) Maximum | Voltage - Input (DC) Minimum | Load Current | On-State Resistance (Max) | Termination Style | Circuit | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Approval Agency | Mounting Type | Voltage - Load (Max) | Voltage - Load (Min) | Voltage - Input (Maximum) | Input Current (Maximum) | Input Current (Minimum) | Voltage - Input (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Celduc Inc. | AC Proportional Control | 5 VDC | 0 V | 50 A | 500 mOhm | Screw Terminal | SPST-NO (1 Form A) | Module | 90 °C | -40 °C | cULus UL VDE | Chassis Mount | 480 V | 200 V | ||||
Celduc Inc. | AC Proportional Control | 125 A | 500 mOhm | Screw Terminal | SPST-NO (1 Form A) | Module | 90 °C | -40 °C | cULus UL VDE | Chassis Mount | 480 V | 200 V | 20 mA 20 mA | 20 mA 20 mA | 4 mA 4 mA | 4 mA |
