387-022 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 22POS 0.156

...

Part	Contact Finish	Number of Positions	Read Out	Termination	Flange Feature	Flange Feature	Flange Feature	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Material - Insulation	Color	Pitch [x]	Pitch [x]	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 387-022-520-812	Gold	22 positions	Dual	Solder	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Female	10 Áin	0.25 Ám	2	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Dual Edge	11	Cantilever
EDAC Inc. 387-022-558-804	Gold	22 positions	Dual	Wire Wrap	Top Mount Opening Unthreaded			Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Female	10 Áin	0.25 Ám	2	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Dual Edge	11	Cantilever	0.156 in	3.96 mm

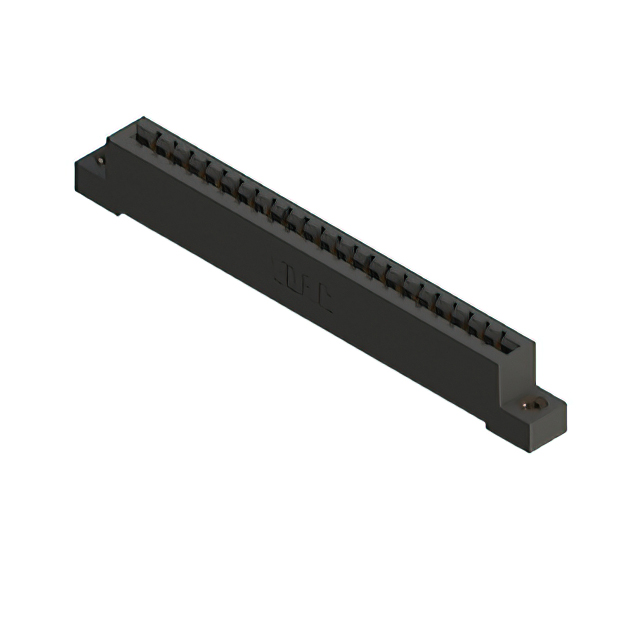

EDAC Inc. 387-022-541-108	Gold	22 positions	Single	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Female	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Single Edge	22	Cantilever
EDAC Inc. 387-022-558-208	Gold	22 positions	Dual	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening			Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Female	10 Áin	0.25 Ám	2	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Dual Edge	11	Cantilever

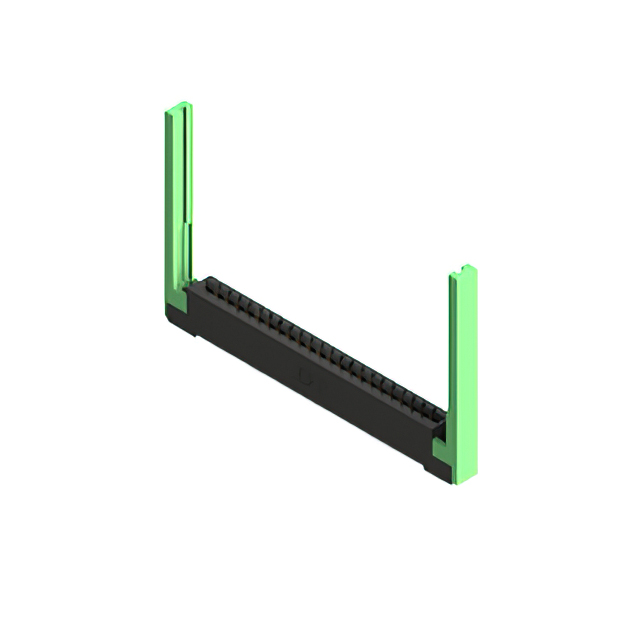

EDAC Inc. 387-022-544-168	Gold	22 positions	Single	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Female	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Single Edge	22	Cantilever
EDAC Inc. 387-022-544-108	Gold	22 positions	Single	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Female	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Single Edge	22	Cantilever
EDAC Inc. 387-022-523-607	Gold	22 positions	Single	Solder	M3 Threaded Insert Top Mount Opening			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Female	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Single Edge	22	Cantilever
EDAC Inc. 387-022-521-668	Gold	22 positions	Single	Solder	4-40 Threaded Insert Top Mount Opening			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Female	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Single Edge	22	Cantilever

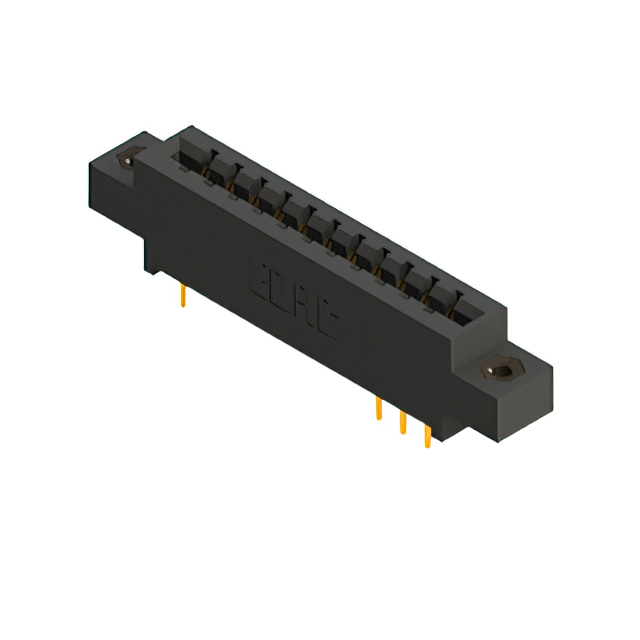

EDAC Inc. 387-022-523-808	Gold	22 positions	Dual	Solder	4-40 Threaded Insert Top Mount Opening			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Female	10 Áin	0.25 Ám	2	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Dual Edge	11	Cantilever
EDAC Inc. 387-022-540-604	Gold	22 positions	Single	Wire Wrap	Top Mount Opening Unthreaded			Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Female	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Black	0.156 in	3.96 mm	Copper Alloy	Non Specified - Single Edge	22	Cantilever	0.156 in	3.96 mm
