UT0W7 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 55POS PNL MT

Part	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Housing Color	Ingress Protection IP Rating	Ingress Protection Description	Note	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Mounting Feature	Orientation	Number of Positions	Material Flammability Rating	Shell Finish	Type	Contact Shape	Insert Material	Fastening Type	Mounting Type	Contact Size	Shell Material	Contact Type	Shell Size - Insert Width	Shell Size - Insert Length

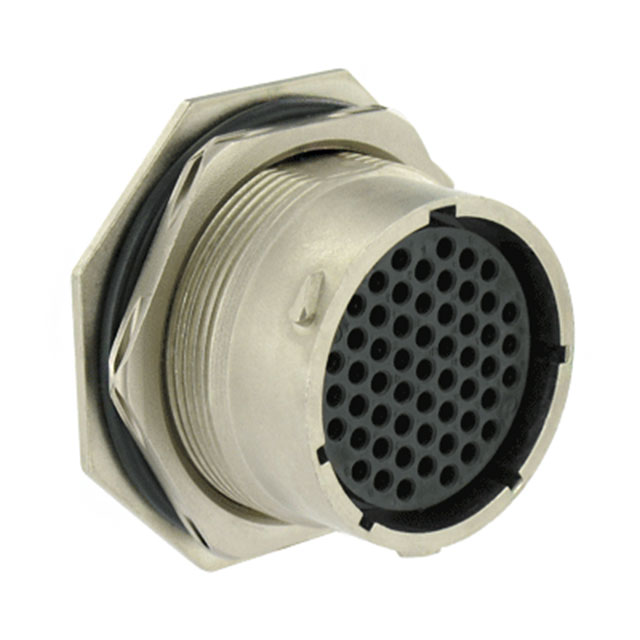

Amphenol Aerospace Operations UT0W72255SH	22	55	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	55	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp
Amphenol Aerospace Operations UT0W71626SH6	16 S	26	Silver	IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	26	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp
Amphenol Aerospace Operations UT0W71626SH	16 S	26	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	26	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp

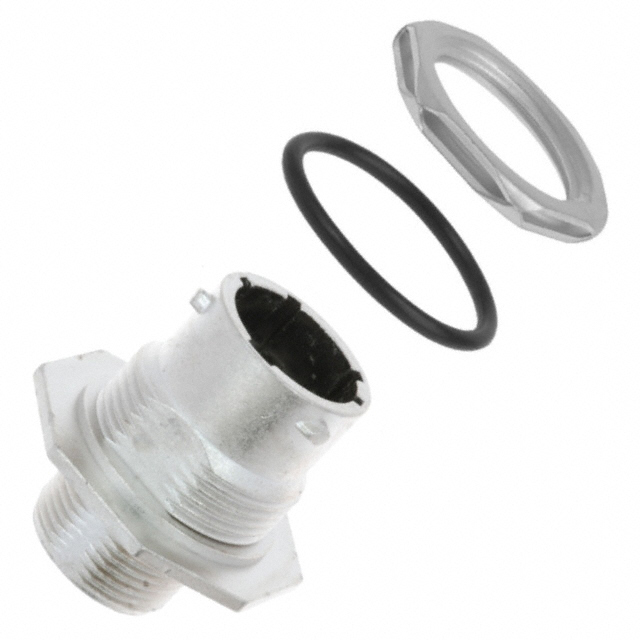

Amphenol Aerospace Operations UT0W71210PH			Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	10	UL94 V-0	Nickel	For Male Pins	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp	10 mm	12 mm

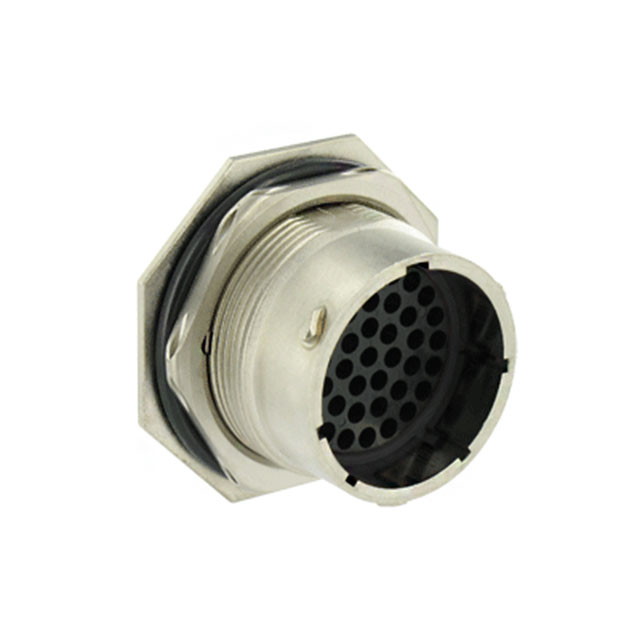

Amphenol Aerospace Operations UT0W72041PH	20	41	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	41	UL94 V-0	Nickel	For Male Pins	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp

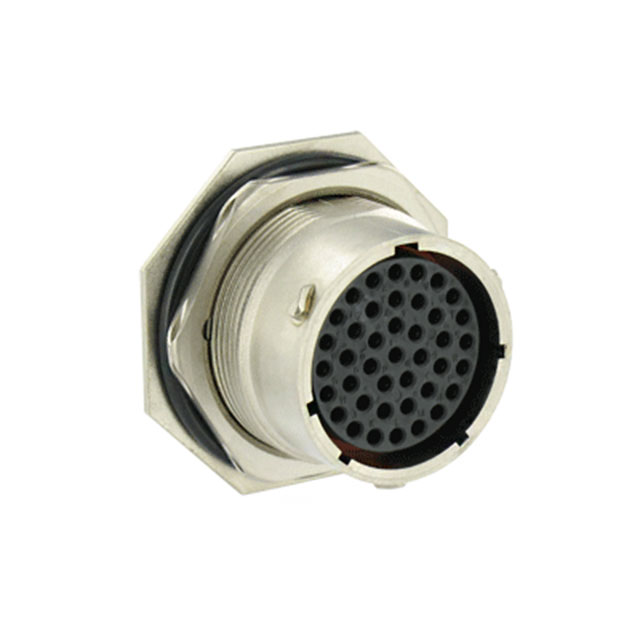

Amphenol Aerospace Operations UT0W72041SH	20	41	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	41	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp

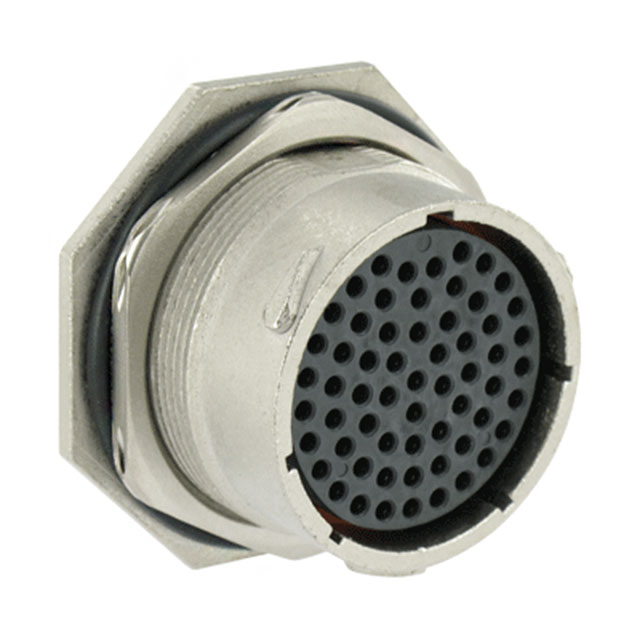

Amphenol Aerospace Operations UT0W72461SH	24	61	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	61	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp

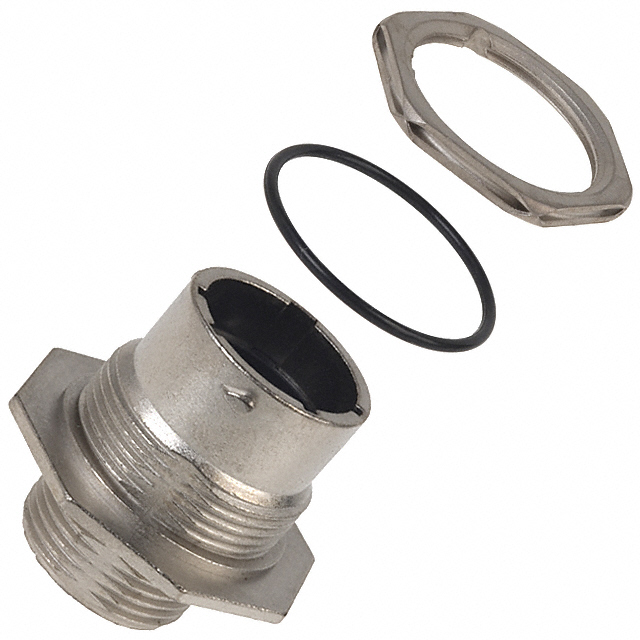

Amphenol Aerospace Operations UT0W71419PH	14 S	19	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	19	UL94 V-0	Nickel	For Male Pins	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp

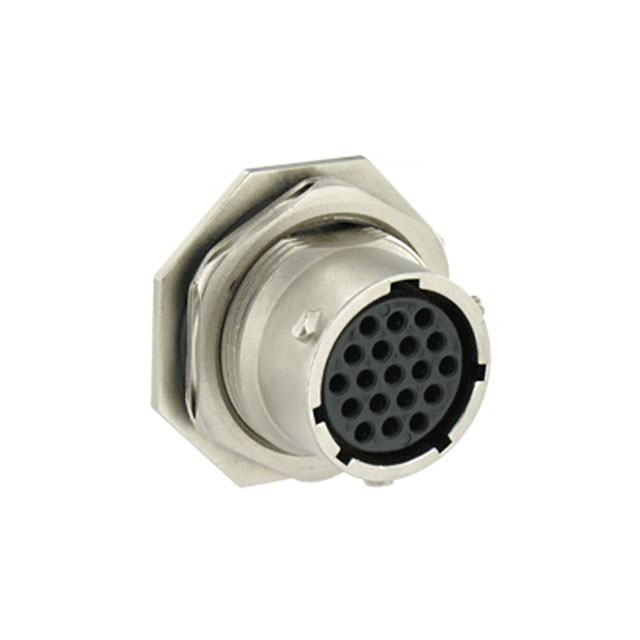

Amphenol Aerospace Operations UT0W71419SH6	14 S	19	Silver	IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	19	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp
Amphenol Aerospace Operations UT0W72461SH6	24	61	Silver	IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	Shielded	-40 °C	105 °C	Receptacle Housing	Bulkhead Front Side Nut	N (Normal)	61	UL94 V-0	Nickel	For Female Sockets	Circular	Glass Filled Thermoplastic	Bayonet Lock	Panel Mount	20	Zinc Alloy	Crimp
