FLECTO Series
Manufacturer: Harwin Inc.
Beta
⌘K

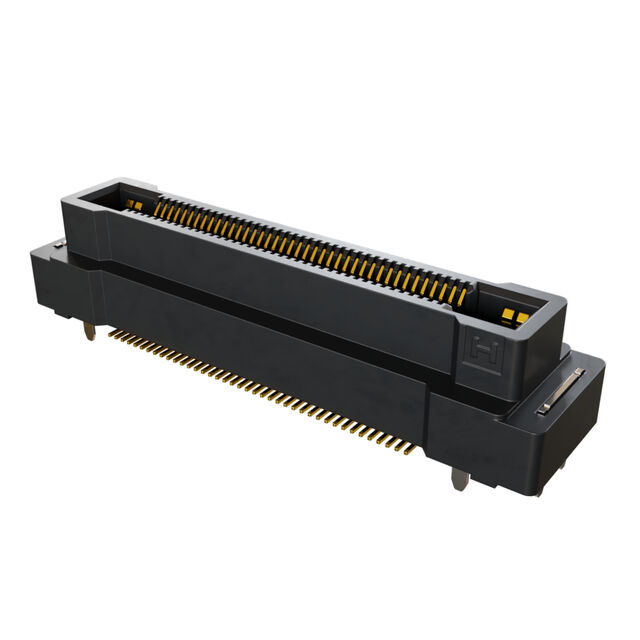

BOARD TO BOARD & MEZZANINE CONNECTORS FLECTO 0.5MM PITCH FEMALE 80 WAY SIGNAL+POWER (6.80MM)
| Part | Contact Finish Thickness | Connector Type | Pitch | Pitch | Contact Finish | Mounting Type | Features | Mated Stacking Heights [custom] | Number of Positions | Number of Rows [custom] | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Flash | Floating Outer Shroud Contacts Receptacle | 0.02 " | 0.5 mm | Gold | Surface Mount | Board Guide Pick and Place Solder Retention | 15 mm 20 mm | 80 | 2 | |
 Harwin Inc. | Flash | Floating Outer Shroud Contacts Receptacle | 0.02 " | 0.5 mm | Gold | Surface Mount | Board Guide Pick and Place Solder Retention | 30 | 2 | 24.9 mm | |
 Harwin Inc. | Flash | Floating Outer Shroud Contacts Receptacle | 0.02 " | 0.5 mm | Gold | Surface Mount | Board Guide Pick and Place Solder Retention | 15 mm 20 mm | 60 | 2 | |
 Harwin Inc. | Flash | Floating Outer Shroud Contacts Receptacle | 0.025 in | 0.64 mm | Gold | Surface Mount | Board Guide Pick and Place Solder Retention | 60 | 2 | 14.88 mm | |
 Harwin Inc. | Flash | Floating Outer Shroud Contacts Receptacle | 0.02 " | 0.5 mm | Gold | Surface Mount | Board Guide Pick and Place Solder Retention | 15 mm 20 mm | 100 | 2 |
