AAA3FB Series

Catalog

AAA SERIES XLR, LOW PROFILE, 3 POSITION FEMALE, BLACK WITH YELLOW BACKSHELL

Part	Contact Finish - Mating	Shell Size - Insert	Insert Material	Features	Shielding	Primary Material	Contact Material	Orientation	Shell Material	Connector Type	Applications	Mounting Type	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Fastening Type	Shell Finish	Backshell Material, Plating	Color	Current Rating (Amps)	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Voltage Rating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]
SWITCHCRAFT/CONXALL AAA3FBYYLP	Silver	XLR	Thermoplastic	Backshell Ground Strain Relief	Shielded	Metal	Copper Alloy	Keyed	Zinc Alloy	Plug Female Sockets	Audio Instrumentation	Free Hanging (In-Line)	0.145 in	0.205 in	3.68 mm	5.21 mm	Latch Lock	Black Painted	Thermoplastic
SWITCHCRAFT/CONXALL AAA3FBZ	Silver	XLR	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Shielded	Metal	Copper Alloy	Keyed	Zinc Alloy	Plug Female Sockets	Audio Industrial Instrumentation Medical	Free Hanging (In-Line)	0.1 "	0.22 in	2.54 mm	5.59 mm	Latch Lock	Chrome		Black	15 A	Chrome	Zinc	125 VAC

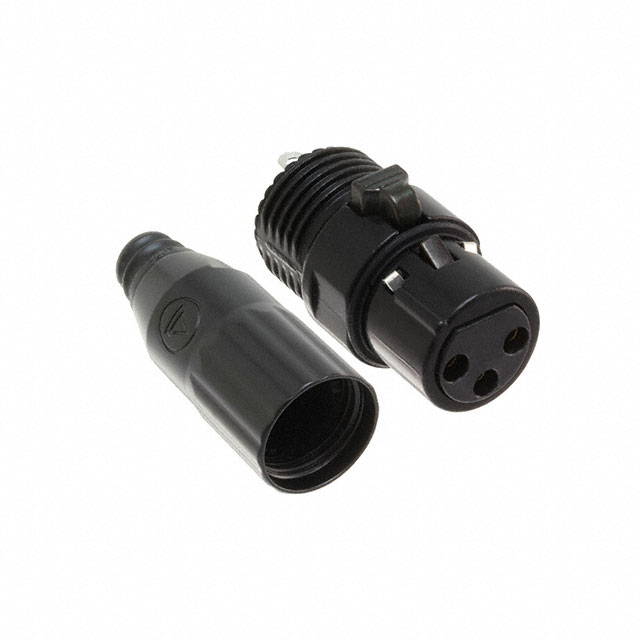

SWITCHCRAFT/CONXALL AAA3FBAUZ	Gold	XLR	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Shielded	Metal	Copper Alloy	Keyed	Zinc Alloy	Plug Female Sockets	Audio Industrial Instrumentation Medical	Free Hanging (In-Line)	0.1 "	0.22 in	2.54 mm	5.59 mm	Latch Lock	Chrome		Black	15 A	Chrome	Zinc	125 VAC
SWITCHCRAFT/CONXALL AAA3FBAUZH	Gold	XLR	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Shielded	Metal	Copper Alloy	Keyed	Zinc Alloy	Plug Female Sockets	Audio Instrumentation	Free Hanging (In-Line)	0.15 "	0.285 in	3.81 mm	7.24 mm	Latch Lock	Chrome		Black		Chrome	Zinc		IP66 - Dust Tight Water Resistant	-40 C	65 °C
