CPT-4011 Series

Catalog

BUZZER PIEZO 40.00MM TH

Part	Technology	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Sound Pressure Level (SPL)	Input Type	Frequency	Current - Supply	Driver Circuitry	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Voltage Range	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated

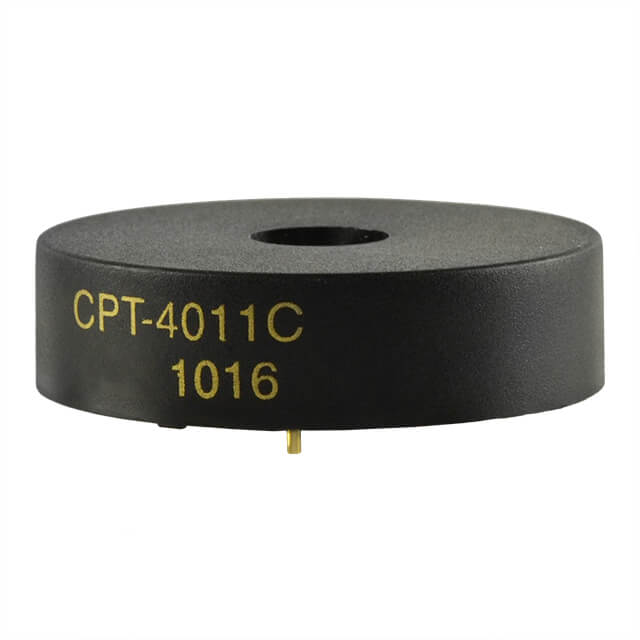

Same Sky (Formerly CUI Devices) CPT-4011C-600	Piezo	Single Tone	80 °C	-30 ░C	85 dB	Peak-Peak Signal	3.25 kHz	40 mA	Externally Driven Transducer	PC Pins	11.5 mm	0.453 in	Through Hole	60 V	1.575 in	40 mm	Top
Same Sky (Formerly CUI Devices) CPT-4011-85PM	Piezo		80 °C	-30 ░C	85 dB	Peak-Peak Signal	3.25 kHz	30 mA	Externally Driven Transducer	Wire Leads			Flange Panel Mount	60 V			Side	0.472 in	12 mm	46.5 mm	48 mm	1.831 in	1.89 in	12 VDC
Same Sky (Formerly CUI Devices) CPT-4011C-600	Piezo	Single Tone	80 °C	-30 ░C	85 dB	Peak-Peak Signal	3.25 kHz	40 mA	Externally Driven Transducer	PC Pins	11.5 mm	0.453 in	Through Hole	60 V	1.575 in	40 mm	Top
Same Sky (Formerly CUI Devices) CPT-4011-85PM	Piezo		80 °C	-30 ░C	85 dB	Peak-Peak Signal	3.25 kHz	30 mA	Externally Driven Transducer	Wire Leads			Flange Panel Mount	60 V			Side	0.472 in	12 mm	46.5 mm	48 mm	1.831 in	1.89 in	12 VDC
