PYB10 Series

Manufacturer: CUI Inc.

Catalog

DC/DC CONVERTER +/-15V 10W

Part	Number of Outputs	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max)	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Approval Agency	Voltage - Output 2	Efficiency	Mounting Type	Type	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]	Features	Package / Case	Applications	Voltage - Isolation	Control Features

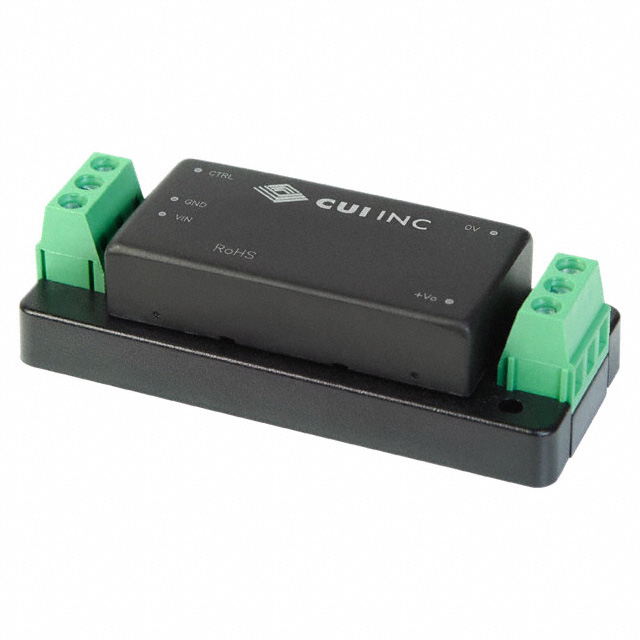

CUI Inc. PYB10-Q48-D15-T	2	15 V	18 V	333 mA	75 V	10 W	85 °C	-40 C	2.99 in	0.84 in	31.5 mm	21.2 mm	1.24 in	76 mm	55024 55032	EN	-15 V	88 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q24-S24-T	1	24 V	9 V		36 V	10 W	85 °C	-40 C	2.99 in	0.84 in	31.5 mm	21.2 mm	1.24 in	76 mm	55024 55032	EN		87 %	Chassis Mount	Enclosed	416 mA
CUI Inc. PYB10-Q48-S3-T	1	3.3 V	18 V		75 V	10 W	85 °C	-40 C	2.99 in	0.84 in	31.5 mm	21.2 mm	1.24 in	76 mm		EN IEC		79 %	Chassis Mount	Enclosed	2.4 A

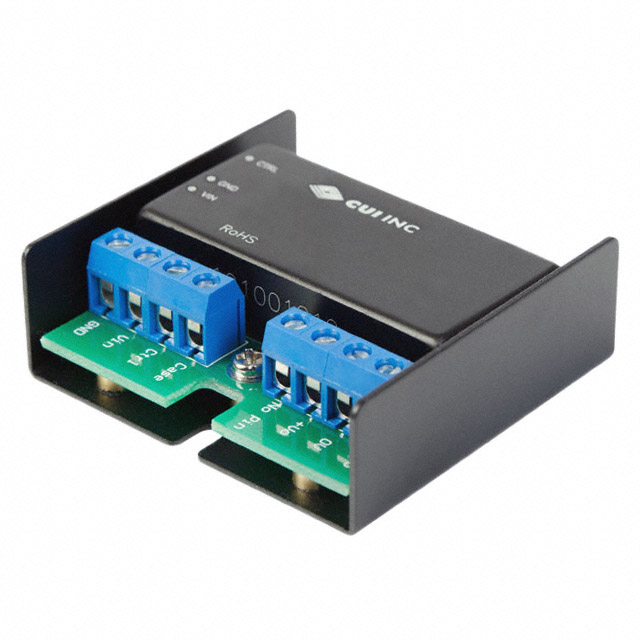

CUI Inc. PYB10-Q48-S15-U	1	15 V	18 V		75 V	10 W	85 °C	-40 C	2.16 in	0.75 "	52.3 mm	19.1 mm	2.06 in	54.9 mm		EN IEC		87 %	Chassis Mount	Enclosed	667 mA
CUI Inc. PYB10-Q48-S12-U	1	12 V	18 V		75 V	10 W	85 °C	-40 C	2.16 in	0.75 "	52.3 mm	19.1 mm	2.06 in	54.9 mm		EN IEC		86 %	Chassis Mount	Enclosed	833 mA

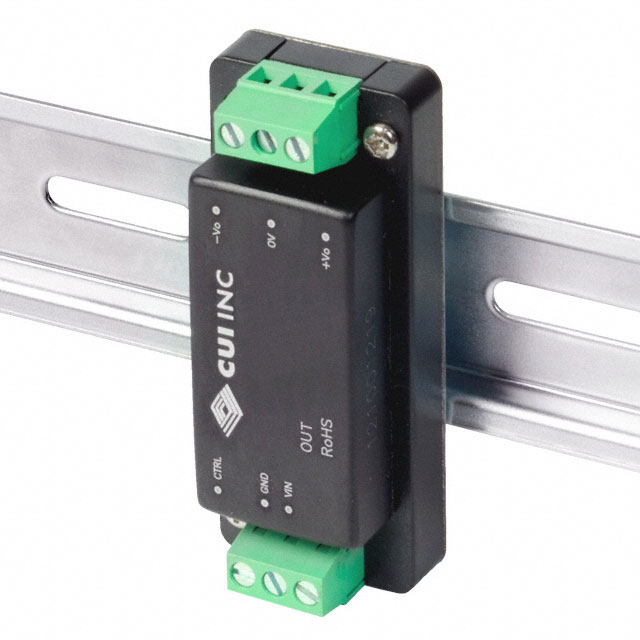

CUI Inc. PYB10-Q24-S12-DIN	1	12 V				10 W	85 °C	-40 C	2.99 in	0.87 in	31.5 mm	22.2 mm	1.24 in	76 mm	55024 55032	EN		84 %			833 mA	9 V	DC	36 V
CUI Inc. PYB10-Q48-D5-T	2	5 V	18 V	1 A	75 V	10 W	85 °C	-40 C	2.99 in	0.84 in	31.5 mm	21.2 mm	1.24 in	76 mm	55024 55032	EN	-5 V	83 %	Chassis Mount	Enclosed

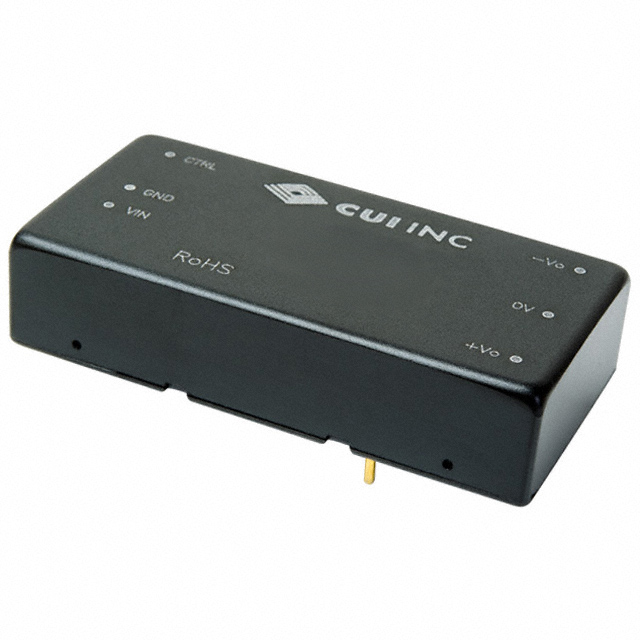

CUI Inc. PYB10-Q48-S5	1	5 V	18 V		75 V	10 W	85 °C	-40 C	2 in	0.47 "	25.4 mm	11.8 mm	1 "	50.8 mm	55024	EN			Through Hole	Isolated Module	2 A				OVP SCP	6-DIP Module 5 Leads	ITE (Commercial)	1.5 kV
CUI Inc. PYB10-Q24-D15	2	15 V	9 V	333 mA	36 V	10 W	85 °C	-40 C	2 in	0.47 "	25.4 mm	11.8 mm	1 "	50.8 mm	55024	EN	-15 V	88 %	Through Hole	Isolated Module					OVP Remote On/Off SCP	6-DIP Module	ITE (Commercial)	1.5 kV	Active High Enable
CUI Inc. PYB10-Q48-S3-DIN	1	3.3 V				10 W	85 °C	-40 C	2.99 in	0.87 in	31.5 mm	22.2 mm	1.24 in	76 mm		EN IEC		77 %			2.4 A	18 V	DC	75 V
