NR0110 Series

Catalog

ROTARY SWITCH, 4 POSITION, 1 POLE, 45 °, 28 V, NR01 SERIES

Part	Number of Positions	Index Stops	Number of Poles per Deck	Contact Material	Number of Decks [custom]	Angle of Throw	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Depth Behind Panel [z]	Current Rating (Amps)	Actuator Length [x]	Circuit per Deck	Contact Finish	Actuator Type	Termination Style	Contact Timing
NKK Switches NR01104ANG13-1H	4	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	7 mm	SP4T	Gold	Knob	PC Pin	Non-Shorting (BBM)

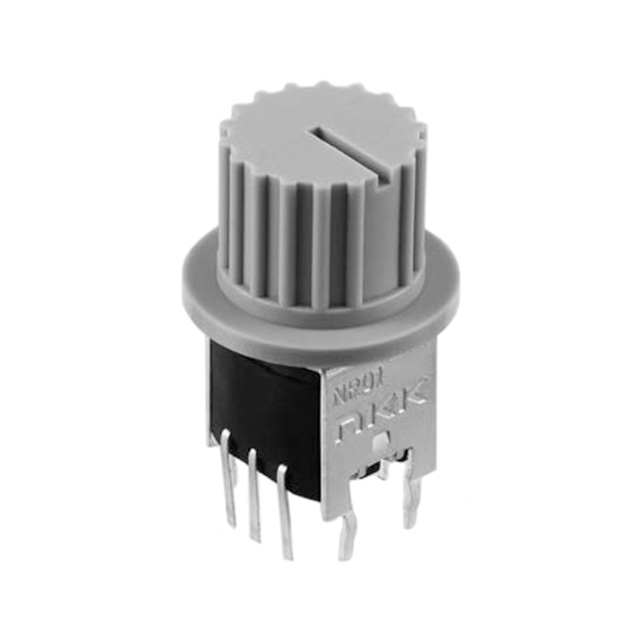

NKK Switches NR01104ANG13-2H	4	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	10.8 mm	SP4T	Gold	Knob	PC Pin	Non-Shorting (BBM)
NKK Switches NR01103ANG13-2A		Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	10.8 mm	SP3T	Gold	Knob	PC Pin	Non-Shorting (BBM)
NKK Switches NR01105ANG13-2H	5	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	10.8 mm	SP5T	Gold	Knob	PC Pin	Non-Shorting (BBM)
NKK Switches NR01104ANG13	4	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA		SP4T	Gold	Knob	PC Pin	Non-Shorting (BBM)
NKK Switches NR01105ANG13-1A	5	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	7 mm	SP5T	Gold	Knob	PC Pin	Non-Shorting (BBM)
NKK Switches NR01103ANG13-2H		Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	10.8 mm	SP3T	Gold	Knob	PC Pin	Non-Shorting (BBM)

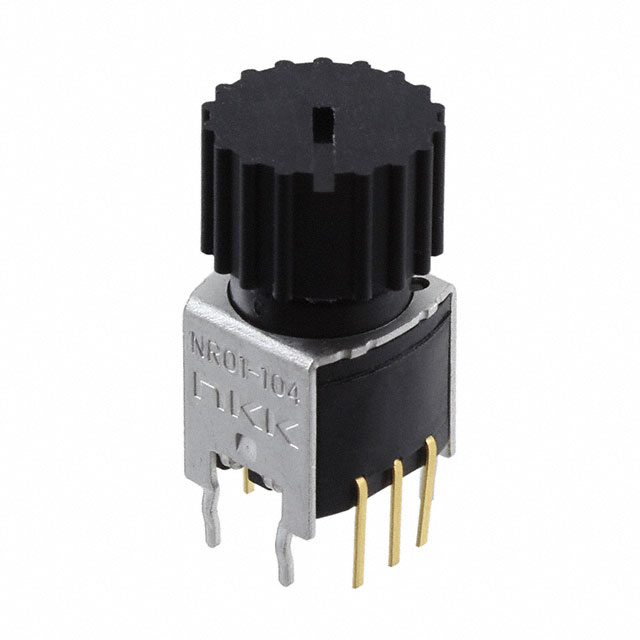

NKK Switches NR01104ANG13-1A	4	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	7 mm	SP4T	Gold	Knob	PC Pin	Non-Shorting (BBM)

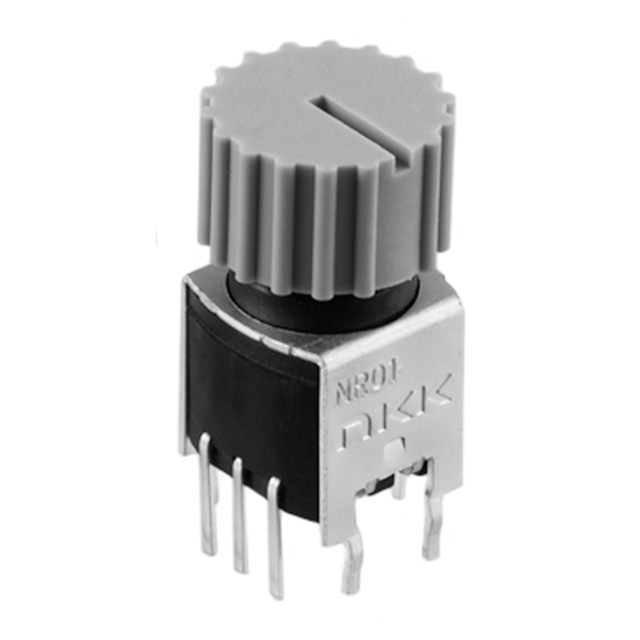

NKK Switches NR01105ANG13-1H	5	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	7 mm	SP5T	Gold	Knob	PC Pin	Non-Shorting (BBM)

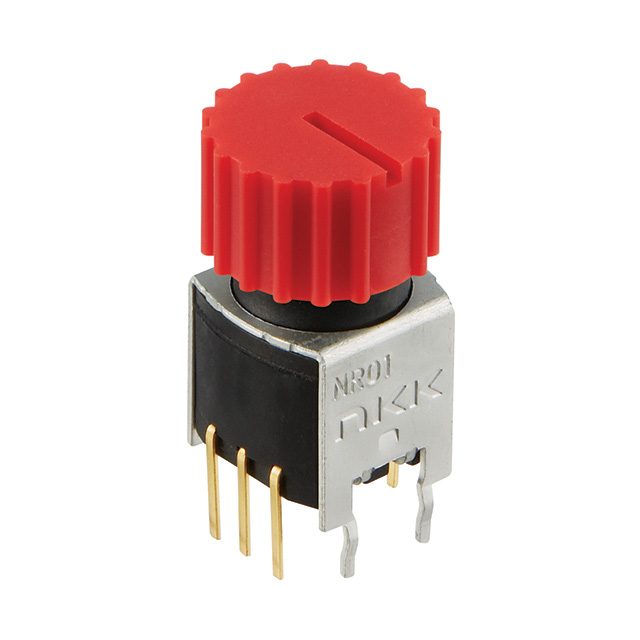

NKK Switches NR01104ANG13-1C	4	Fixed	1	Beryllium Copper	1	45 °	28 V	Through Hole	28 V	10.5 mm	0.4 VA	7 mm	SP4T	Gold	Knob	PC Pin	Non-Shorting (BBM)
