LZ4-V4 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
LED MOD LUXIGEN STARBRD 6335K
| Part | Wavelength | Type | Current - Max | CRI (Color Rendering Index) | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Size / Dimension [diameter] | Light Emitting Surface (LES) [y] | Light Emitting Surface (LES) [x] | Lens Type | CCT (K) | Color | Voltage - Forward (Vf) (Typ) | Height [z] | Temperature - Test | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Lumens/Watt @ Current - Test | Configuration | Viewing Angle | Mounting Type | Package / Case | Orientation | Current - DC Forward (If) (Max) [Max] | Operating Temperature | Wavelength [Min] | Wavelength [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

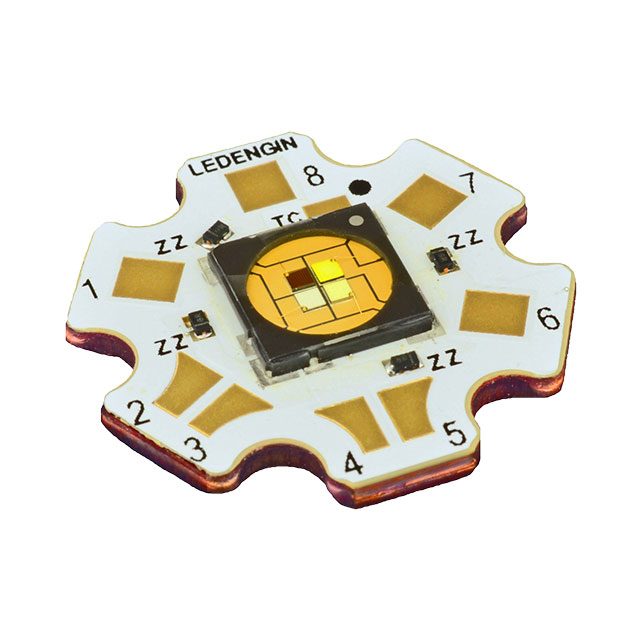

 ams-OSRAM USA INC. | 454 nm 525 nm 624 nm | LED Module | 2.5 A 3 A 3 A 3 A | 75 | 1 A | 1 A | 1 A | 1 A | 19.9 mm | 7 mm | 7 mm | Flat | 6335 K | Blue Green Red White | 2.4 V 3 V 3 V 3.5 V | 2.66 mm | 25 °C | 293 lm | 1250 mW | 220 lm | 115 lm | 48 lm/W 63 lm/W 98 lm/W | Starboard | 110 ° | |||||||

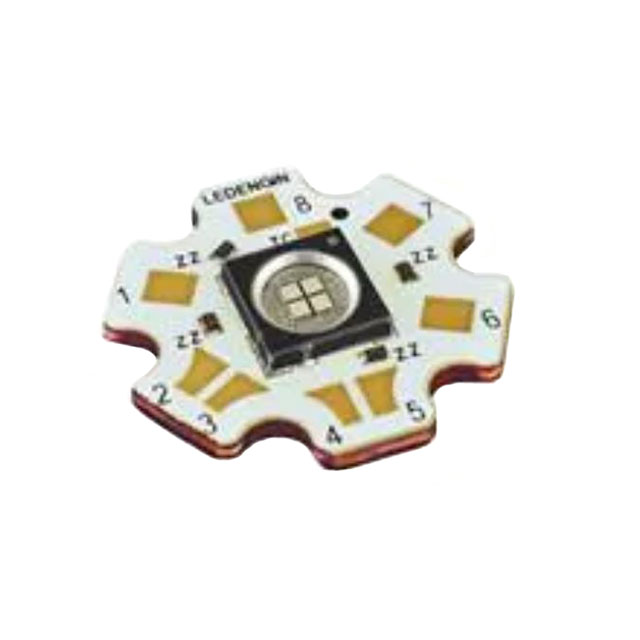

 ams-OSRAM USA INC. | 368 nm | Ultraviolet (UV) | 15.2 V | 110 ° | Surface Mount | Star Array | Top View | 1 A | 130 °C | 365 nm | 370 nm |
