9233 Series
Manufacturer: APEM Inc.
Beta
⌘K

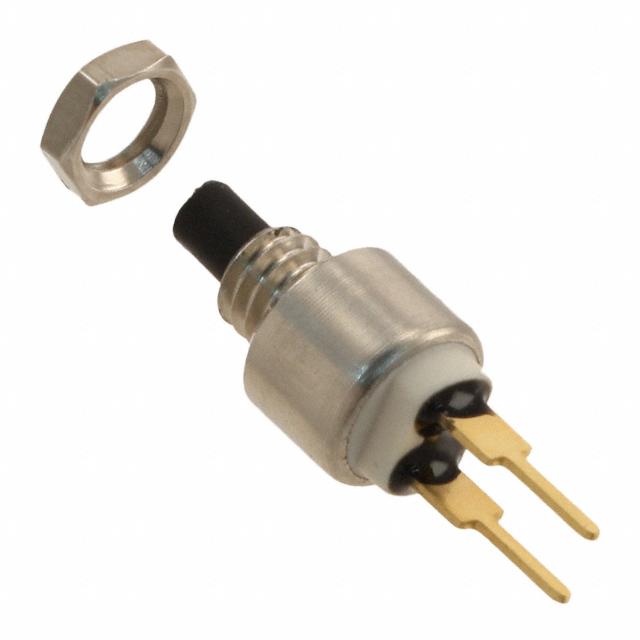

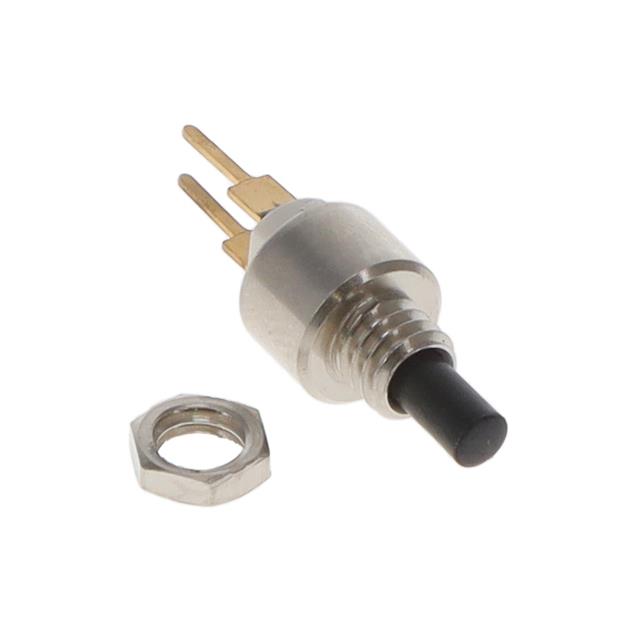

SWITCH PUSH SPST-NO 0.1A 30V
| Part | Electrical Life | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Features | Color - Actuator/Cap | Voltage Rating - DC | Termination Style | Type | Actuator Type | Switch Function | Mounting Type | Current Rating (Amps) | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 250000 Cycles | No Marking | -30 ░C | 65 °C | SPST-NO | Epoxy Sealed Terminals | Black | 30 V | PC Pin | Standard | Plunger Round | Off-Mom | Panel Mount Rear | 100 mA | 4.2 mm |
 APEM Inc. | 100000 Cycles | No Marking | -30 ░C | 65 °C | SPST-NO | Epoxy Sealed Terminals | Black | 30 V | PC Pin | Standard | Plunger Round | Off-Mom | Right Angle Through Hole | 100 mA | |
 APEM Inc. | 250000 Cycles | No Marking | -30 ░C | 65 °C | SPST-NO | Epoxy Sealed Terminals | Black | 30 V | PC Pin | Standard | Plunger Round | Off-Mom | Through Hole | 100 mA | |
 APEM Inc. | 250000 Cycles | No Marking | -30 ░C | 65 °C | SPST-NO | Epoxy Sealed Terminals | Black | 30 V | PC Pin | Standard | Plunger Round | Off-Mom | Panel Mount Rear | 100 mA | 4.2 mm |
