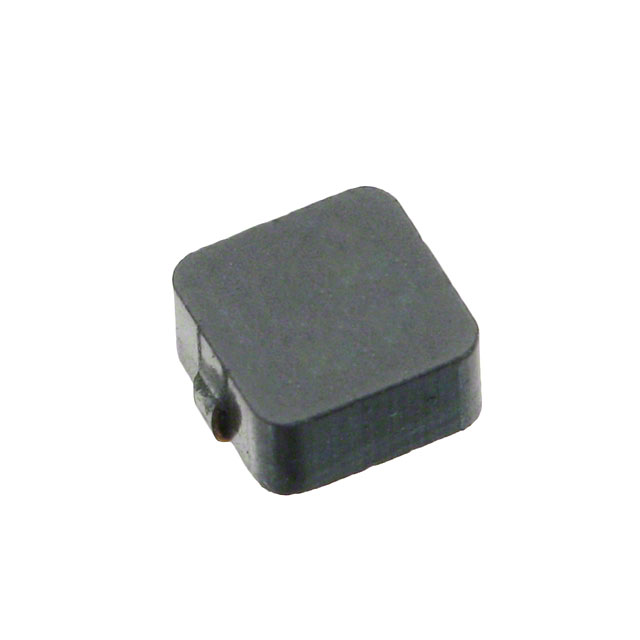

IHLP-1212AE-11 Series
Manufacturer: Vishay Dale
Beta
⌘K
POWER CHOKE SHIELDED WIREWOUND 0.68UH 20% 100KHZ POWDERED IRON 5.4A 0.022OHM DCR 1212 T/R
| Part | Tolerance | Package / Case | Current Rating | Current - Saturation (Isat) | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Width | Size / Dimension Length | Inductance Frequency - Test | Mounting Type | Type | Height - Seated (Max) | Inductance | DC Resistance (DCR) (Max) | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 20 % | Nonstandard | 5.4 A | 5.5 A | 125 °C | -55 °C | 0.118 in | 0.144 in | 100 kHz | Surface Mount | Molded | 0.059 in | 680 nH | 22 mOhm | Shielded |
 Vishay Dale | 20 % | Nonstandard | 3.9 A | 5.3 A | 125 °C | -55 °C | 0.118 in | 0.144 in | 100 kHz | Surface Mount | Molded | 0.047 in | 1 µH | 33 mOhm | Shielded |
