50021 Series

Catalog

CABLE GLAND 13-18.01MM M25

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Type	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Thread Length	Thread Length

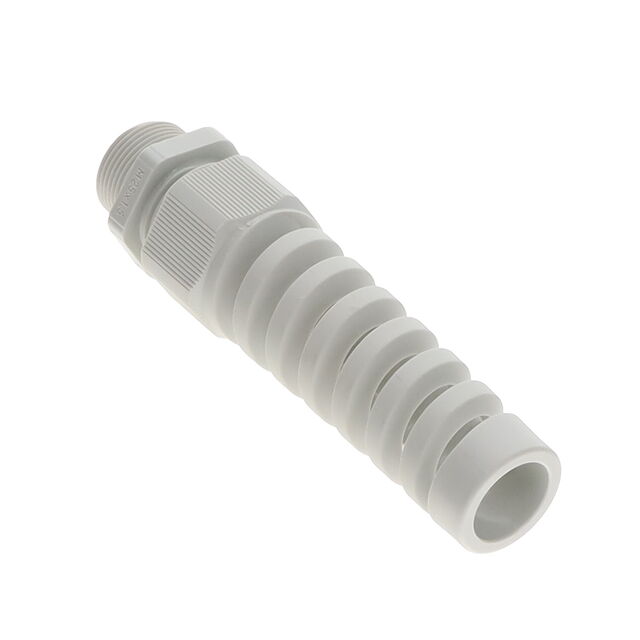

Jacob GmbH 50021M25BS7035	13 mm	0.512 in	Strain Relief	Cable Gland	Gray	18.01 mm	0.709 in	M25x1.5	-40 C	100 °C	IP68 - Dust Tight Waterproof	0.591 in	15 mm
Jacob GmbH 50021/7035/15	13 mm	0.512 in		Cable Gland	Gray	18.01 mm	0.709 in	PG21	-40 C	100 °C	IP68 - Dust Tight Waterproof	0.591 in	15 mm

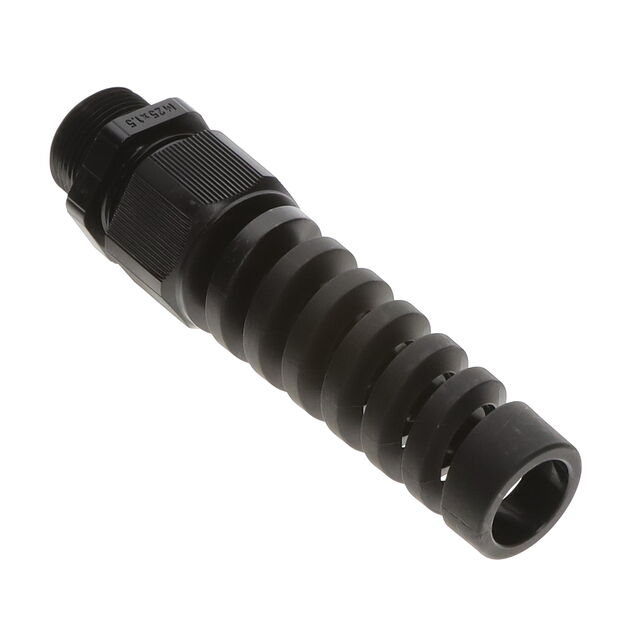

Jacob GmbH 50021M25BSSW	13 mm	0.512 in	Strain Relief	Cable Gland	Black	18.01 mm	0.709 in	M25x1.5	-40 C	100 °C	IP68 - Dust Tight Waterproof	0.591 in	15 mm

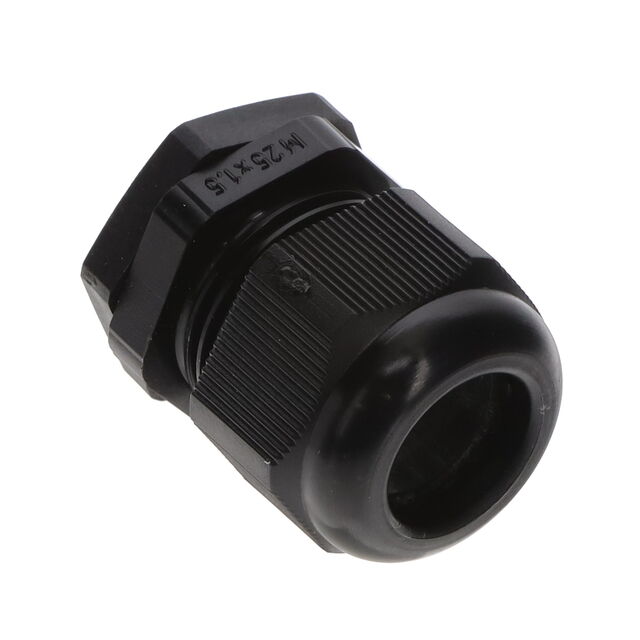

Jacob GmbH 50021M25PA08/SWG			Sealing Ring	Cable Gland	Black			M25x1.5			IP68 - Dust Tight Waterproof

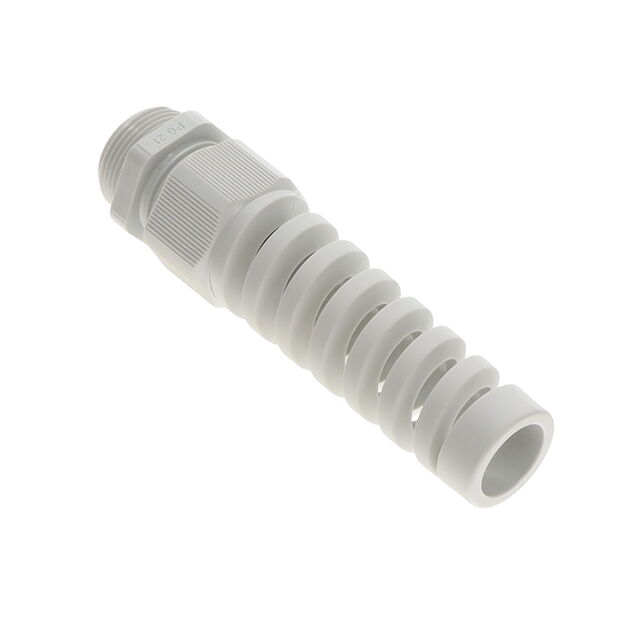

Jacob GmbH 50021PABS7035	13 mm	0.512 in	Strain Relief	Cable Gland	Gray	18.01 mm	0.709 in	PG21	-40 C	100 °C	IP68 - Dust Tight Waterproof	0.433 in	11 mm
