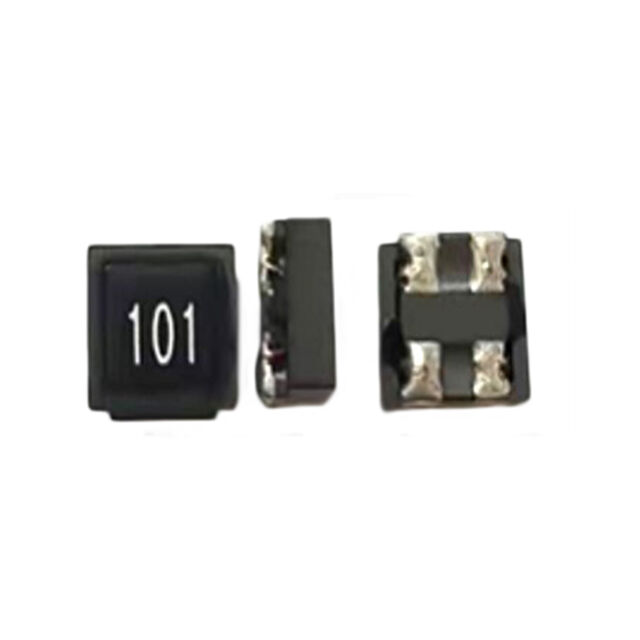

ACMP-5025 Series

Catalog

COMMON MODE CHOKES / FILTERS CMC 500? 4A 2LN SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Lines	Filter Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Impedance @ Frequency	Voltage Rating - DC	Package / Case	DC Resistance (DCR) (Max)
Abracon LLC ACMP-5025-501-T	125 °C	-40 C	2.5 mm	0.098 in	2	Power Line	5 mm	0.197 in	0.189 in	4.8 mm	Surface Mount	19 mOhm	4 A	500 Ohms	50 VDC	Horizontal 4 PC Pad
Abracon LLC ACMP-5025-142-T	125 °C	-40 C	2.5 mm	0.098 in	2	Power Line	5 mm	0.197 in	0.189 in	4.8 mm	Surface Mount		1.5 A	1.4 kOhms	50 VDC	Horizontal 4 PC Pad	40 mOhm
