D9G0223 Series
Manufacturer: Electroswitch
Beta
⌘K

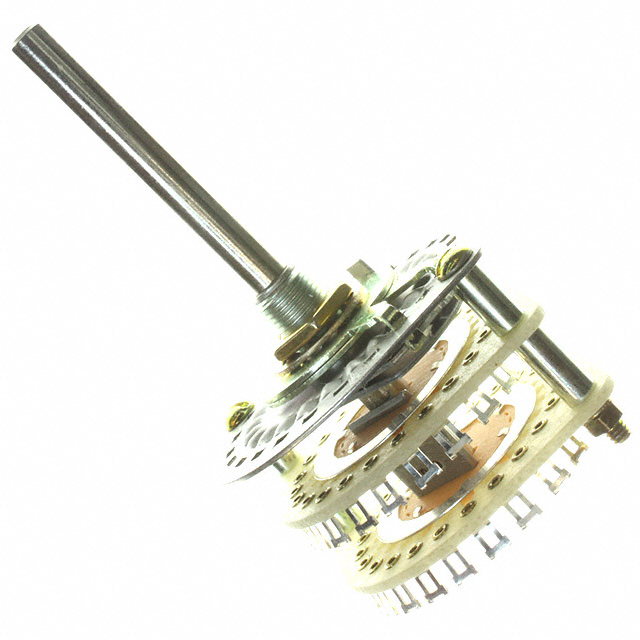

SWITCH ROTARY 2-23POS 250MA 115V
| Part | Panel Cutout Dimensions [diameter] | Number of Poles per Deck | Termination Style | Voltage Rating - AC | Number of Positions [Max] | Number of Positions [Min] | Contact Finish | Contact Timing | Number of Decks | Actuator Length [x] | Mounting Type | Voltage Rating - DC | Circuit per Deck | Actuator Type | Actuator Type [diameter] | Contact Material | Current Rating (Amps) | Angle of Throw | Index Stops | Depth Behind Panel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 1 | Solder Lug | 115 V | 23 | 2 | Silver | Non-Shorting (BBM) | 2 | 47.63 mm | Panel Mount | 28 V | SP23T | Round | 0.25 in | Brass | 1.5 A 250 mA | 15 ° | Adjustable | 26.47 mm |
