1986660 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

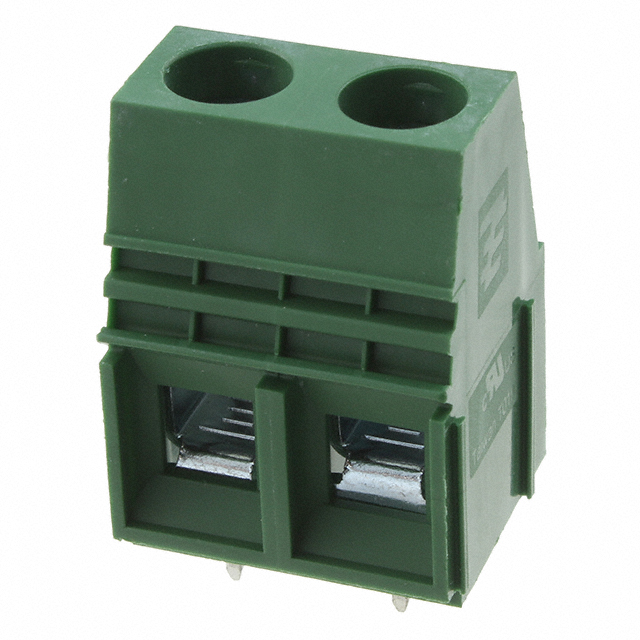

FIXED TERMINAL BLOCKS 2P 300V 65A GREEN W/ INTERLOCK 6-26 AWG
| Part | Screw Material - Plating | Screw Thread | Torque - Screw | Torque - Screw | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage | Positions Per Level | Features | Number of Levels | Current | Pitch | Pitch | Wire Termination | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Steel - Zinc Plated | M4 | 20 Lb-In | 2.26 Nm | Brass - Nickel Plated | -40 C | 105 ░C | Green | 300 VDC | 2 | Interlocking (Side) | 1 | 65 A | 10.16 mm | 0.4 in | Screw | Horizontal with Board | 6 AWG | 26 AWG | Through Hole |
