1451 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR 30PSIG 0.09" .06V

Part	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Applications	Output Type	Port Size	Port Size	Port Size	Termination Style	Maximum Pressure [Max]	Maximum Pressure	Mounting Type	Port Style	Package / Case	Output [Max]	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure	Maximum Pressure [Max]
TE Connectivity AMP Connectors 1451-030G-T	Vented Gauge	125 °C	-40 C	0.25 %	Board Mount	Wheatstone Bridge	Male Tube	0.09 in	2.29 mm	SMD (SMT) Tab	90 PSI	620.53 kPa	Surface Mount	Barbless	10-SMD Module	60 mV	30 PSI	206.84 kPa	3 V	12 V
TE Connectivity AMP Connectors 1451-015A-N		125 °C	-40 C	0.25 %	Board Mount	Wheatstone Bridge				SMD (SMT) Tab		310.26 kPa	Surface Mount	No Port	10-SMD Module	60 mV	15 PSI	103.42 kPa	3 V	12 V	45 PSI
TE Connectivity AMP Connectors 1451-100G-T	Vented Gauge	125 °C	-40 C	0.25 %	Board Mount	Wheatstone Bridge	Male Tube	0.09 in	2.29 mm	SMD (SMT) Tab	300 PSI		Surface Mount	Barbless	10-SMD Module	60 mV	100 PSI	689.48 kPa	3 V	12 V		2068.43 kPa

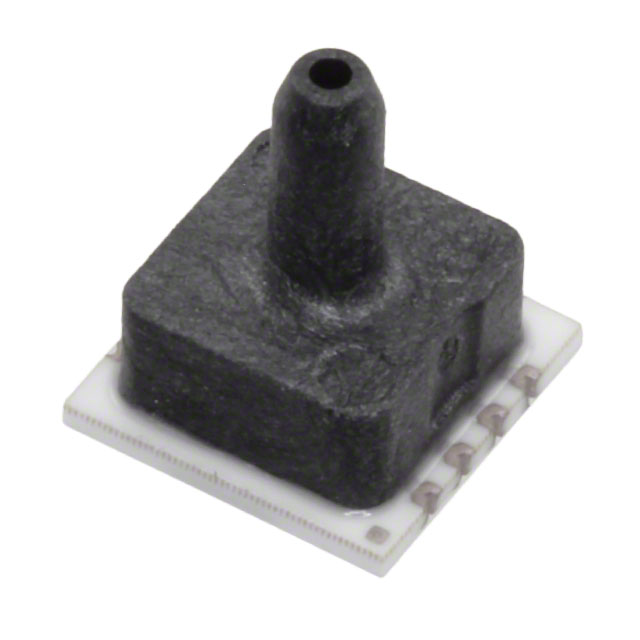

TE Connectivity AMP Connectors 1451-015A-T		125 °C	-40 C	0.25 %	Board Mount	Wheatstone Bridge	Male Tube	0.09 in	2.29 mm	SMD (SMT) Tab		310.26 kPa	Surface Mount	Barbless	10-SMD Module	60 mV	15 PSI	103.42 kPa	3 V	12 V	45 PSI

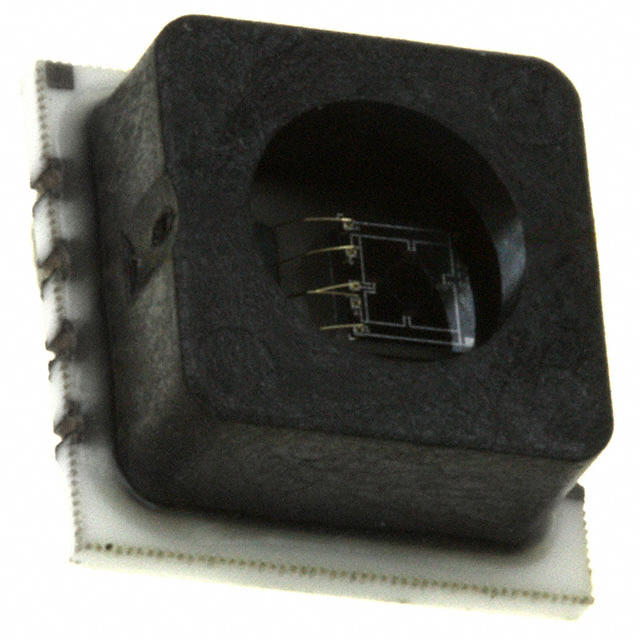

TE Connectivity AMP Connectors 1451-050A-W		125 °C	-40 C	0.25 %	Board Mount	Wheatstone Bridge				SMD (SMT) Tab		1034.21 kPa	Surface Mount	No Port	10-SMD Module	60 mV	50 PSI	344.74 kPa	3 V	12 V	150 PSI

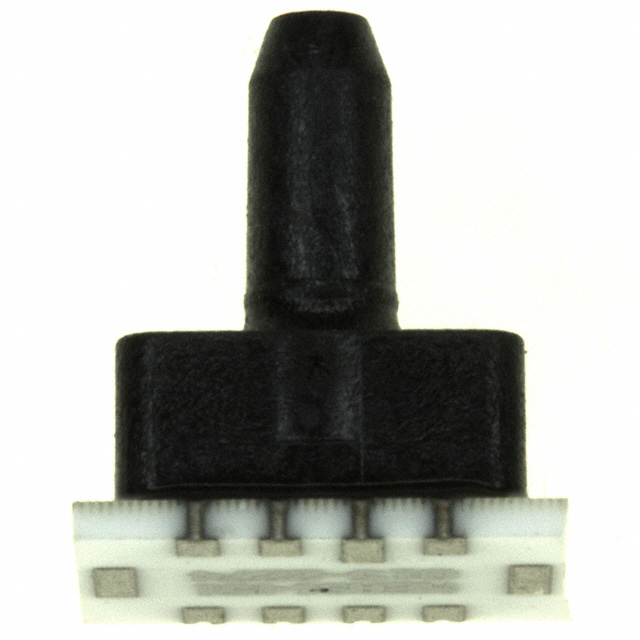

TE Connectivity AMP Connectors 1451-015G-T	Vented Gauge	125 °C	-40 C	0.25 %	Board Mount	Wheatstone Bridge	Male Tube	0.09 in	2.29 mm	SMD (SMT) Tab		310.26 kPa	Surface Mount	Barbless	10-SMD Module	60 mV	15 PSI	103.42 kPa	3 V	12 V	45 PSI
