AEVS96 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

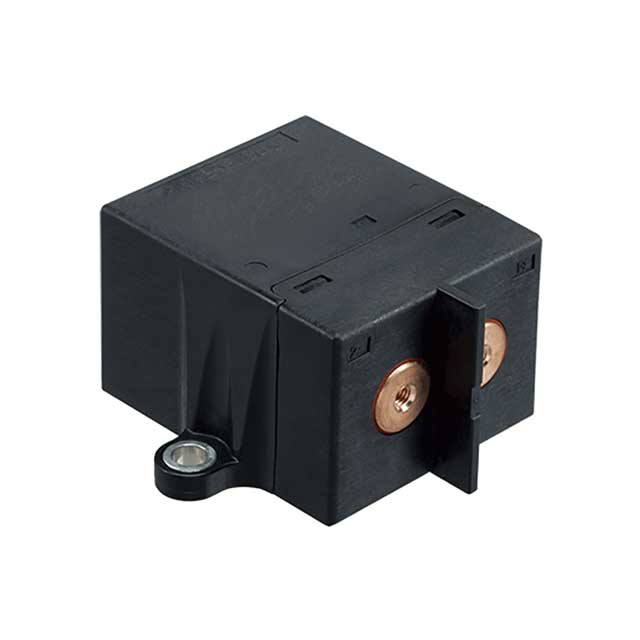

AUTOMOTIVE RELAY, 12 VDC, 60 A, SPST-NO, PANEL MOUNT, SCREW, AEVS SERIES
| Part | Coil Power | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Voltage | Must Release Voltage | Contact Rating (Current) | Must Operate Voltage | Coil Current | Contact Form | Termination Style | Termination Style | Mounting Type | Operate Time | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 4.5 W | 50 ms | 80 °C | -40 C | Non Latching | 12 VDC | 1 VDC | 60 A | 9 VDC | 375 mA | SPST-NO (1 Form A) | 0.25 in 6.3 mm | Screw Terminal Quick Connect | Chassis Mount | 50 ms | 400 VDC |
