325201 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRP 24CIRC 0.325"
| Part | Mounting Type | Material Flammability Rating | Material - Insulation | Operating Temperature | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Top Termination | Features | Voltage Rating | Current Rating (Amps) | Pitch | Pitch | Number of Circuits | Terminal Block Type | Number of Rows | Barrier Type | Number of Wire Entries | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 24 | Barrier Block | 1 | 3 Wall (Tri) | |||
 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 10 | Barrier Block | 1 | 3 Wall (Tri) | 10 | ||

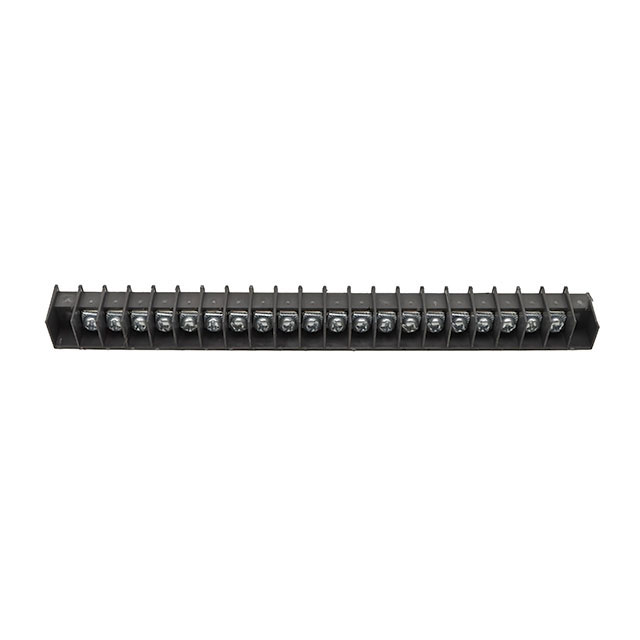

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 20 | Barrier Block | 1 | 3 Wall (Tri) | 20 | ||

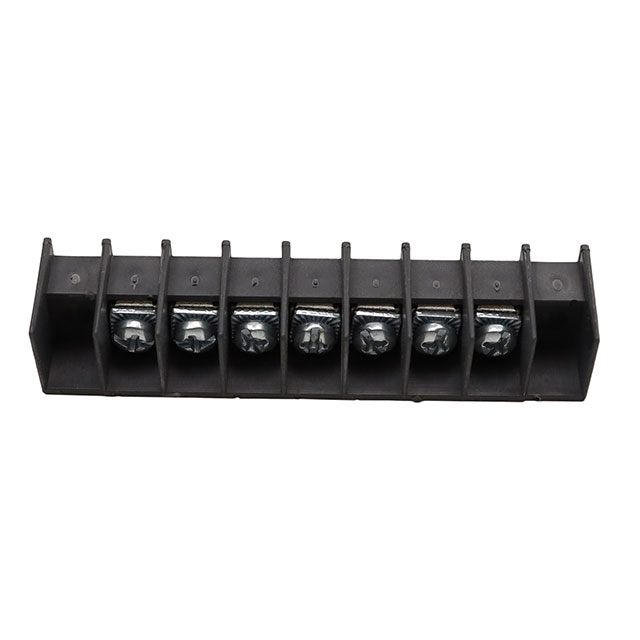

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 7 | Barrier Block | 1 | 3 Wall (Tri) | 7 | ||

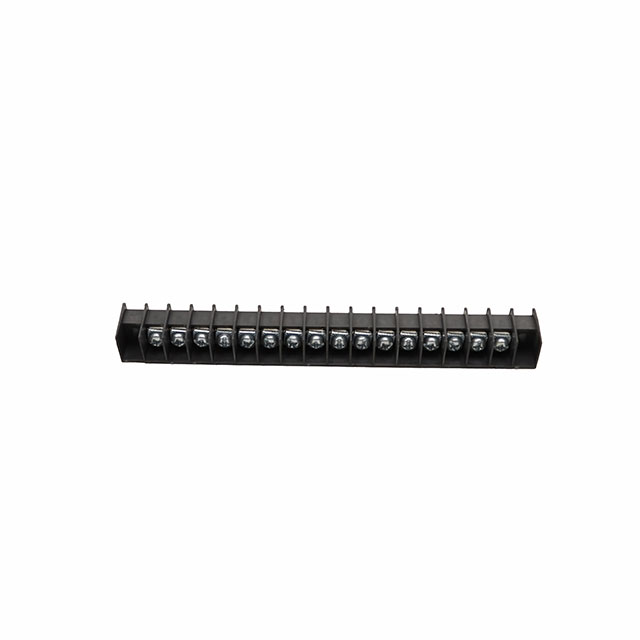

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 16 | Barrier Block | 1 | 3 Wall (Tri) | 16 | ||
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | Barrier Block | 1 | 3 Wall (Tri) | 23 | 23 | ||

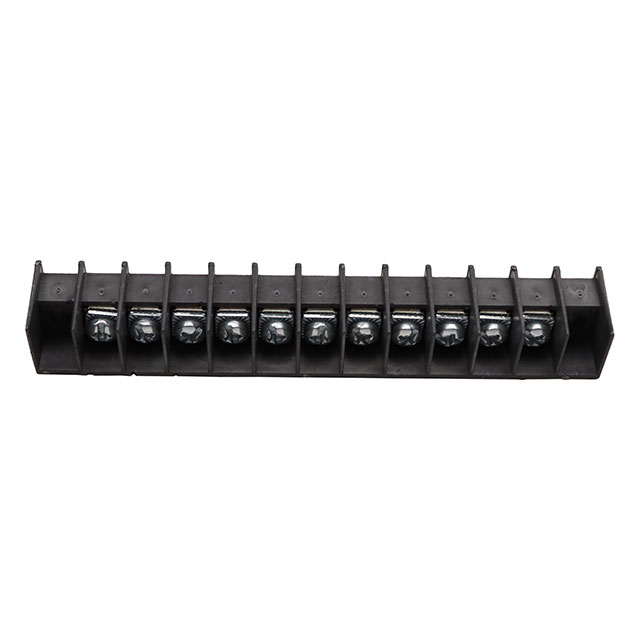

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 11 | Barrier Block | 1 | 3 Wall (Tri) | 11 | ||
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 25 | Barrier Block | 1 | 3 Wall (Tri) | 25 | ||
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 21 | Barrier Block | 1 | 3 Wall (Tri) | 21 | ||
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Closed | 14 AWG | 22 AWG | Screws | Flange | 300 VDC | 15 A | 0.325 in | 8.26 mm | 17 | Barrier Block | 1 | 3 Wall (Tri) | 17 |
