TCT Series

Catalog

INDUSTRIAL CONTROL TRANSFORMERS UL/CUL - 208V, 240V CLASS II CONTROL XFRMR, 12V A. 40VA W/ LEADS

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage - Primary	Voltage - Isolation	Secondary Winding(s)	Weight [custom]	Weight [custom]	Height - Seated (Max) [Max] [z]	Primary Winding(s)	Power - Max [Max]	Mounting Type	Current - Output (Max) [Max]	Termination Style	Type	Voltage - Secondary (Full Load)	Weight	Weight	Height - Seated (Max) [Max]

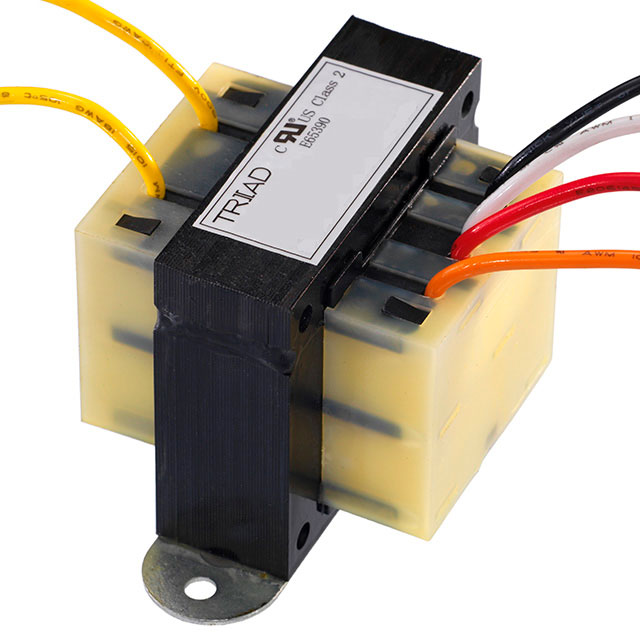

Triad Magnetics TCT40-10E07K	92.46 mm	59.44 mm	208 V 240 V	1500 VAC	Single	680.4 g	1.5 lbs	56.39 mm	Multiple Taps Single	40 VA	Chassis Mount	3.34 A	Wire Leads	Laminated Core	12 V

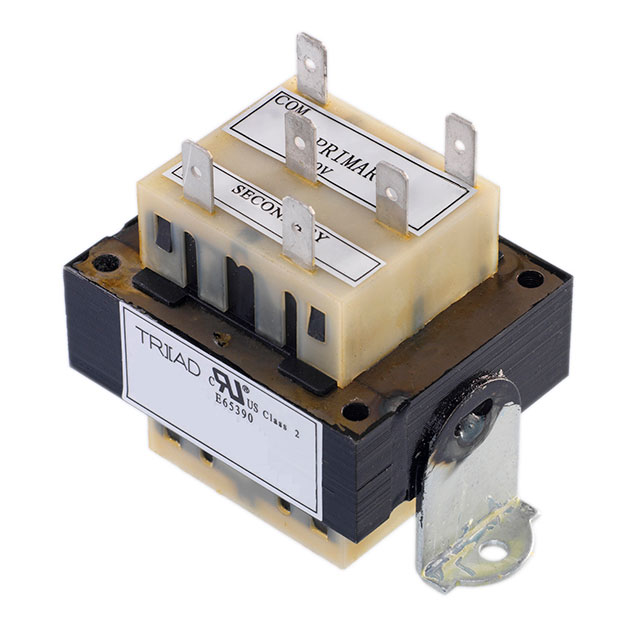

Triad Magnetics TCT50-04E07AE			240 V	1500 VAC	Single			69.6 mm	Single	50 VA	Chassis Mount	4.17 A	Quick Connect Solder	Laminated Core	12 V	907.2 g	2 lbs
Triad Magnetics TCT50-08E07AE	92.46 mm	56.67 mm	120 V 240 V	1500 VAC	Single			57.4 mm	Multiple Taps Single	50 VA	Chassis Mount	4.17 A	Quick Connect Solder	Laminated Core	12 V	907.2 g	2 lbs
Triad Magnetics TCT50-10E07AB	92.46 mm	56.67 mm	208 V 240 V	1500 VAC	Single			57.4 mm	Multiple Taps Single	50 VA	Chassis Mount	4.17 A	Quick Connect Solder	Laminated Core	12 V	907.2 g	2 lbs
Triad Magnetics TCT40-06E07AB	92.46 mm	56.67 mm	120 V 240 V	1500 VAC	Single	680.4 g	1.5 lbs	57.4 mm	Multiple Taps Single	40 VA	Chassis Mount	1.67 A	Quick Connect Solder	Laminated Core	24 V
Triad Magnetics TCT50-01E07AE	92.46 mm	56.67 mm	120 V	1500 VAC	Single			57.4 mm	Single	50 VA	Chassis Mount	2.08 A	Quick Connect Solder	Laminated Core	24 V	907.2 g	2 lbs
Triad Magnetics TCT40-08E07K	92.46 mm	59.44 mm	120 V 240 V	1500 VAC	Single	680.4 g	1.5 lbs		Multiple Taps Single	40 VA	Chassis Mount	3.34 A	Wire Leads	Laminated Core	12 V			55.88 mm
Triad Magnetics TCT40-01E07AE			120 V	1500 VAC	Single	680.4 g	1.5 lbs	59.44 mm	Single	40 VA	Chassis Mount	1.67 A	Quick Connect Solder	Laminated Core	24 V
Triad Magnetics TCT50-03E07K	92.46 mm	56.67 mm	120 V	1500 VAC	Single			57.4 mm	Single	50 VA	Chassis Mount	4.17 A	Wire Leads	Laminated Core	12 V	907.2 g	2 lbs
Triad Magnetics TCT40-09E07K	92.46 mm	56.67 mm	208 V 240 V	1500 VAC	Single	680.4 g	1.5 lbs	57.4 mm	Multiple Taps Single	40 VA	Chassis Mount	1.67 A	Wire Leads	Laminated Core	24 V
