5280-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

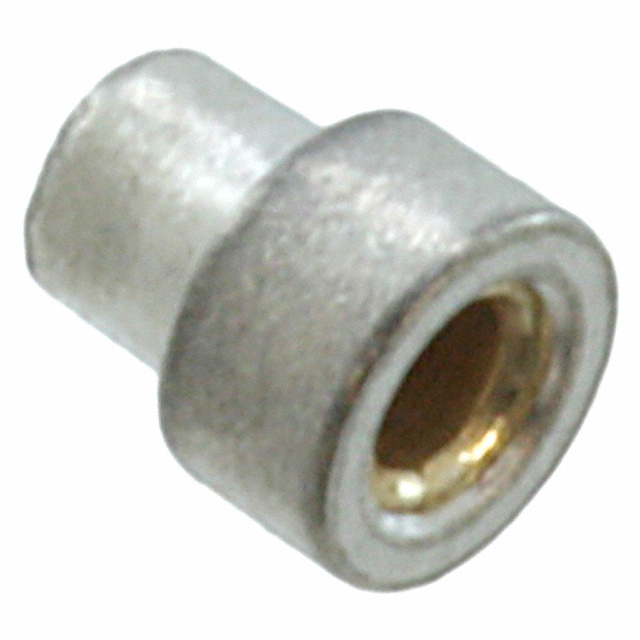

CONN PC PIN CIRC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Socket Depth | Socket Depth | Length - Overall [x] | Length - Overall [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter | Mounting Hole Diameter | Contact Material | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Min] [diameter] | Termination | Tail Type | Features | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Gold | 0.25 Ám | 10 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | |||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Gold | 0.25 Ám | 10 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | |||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | ||||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Tin | 0.76 Ám | 30 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | |||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | Knockout Bottom (Organic Fiber Plug®) | 0.051 in | 1.3 mm |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | |||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail | |||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | 2.16 mm | 0.085 " | 0.067 in | 1.7 mm | Beryllium Copper | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | Solder | No Tail |
