796980 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 6POS VERT 7.62MM
| Part | Contact Tail Length | Contact Tail Length | Contact Material | Insulation Height | Insulation Height | Material Flammability Rating | Header Orientation | Pitch | Pitch | Termination Style | Contact Mating Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Positions Per Level | Type | Voltage - UL | Mounting Type | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

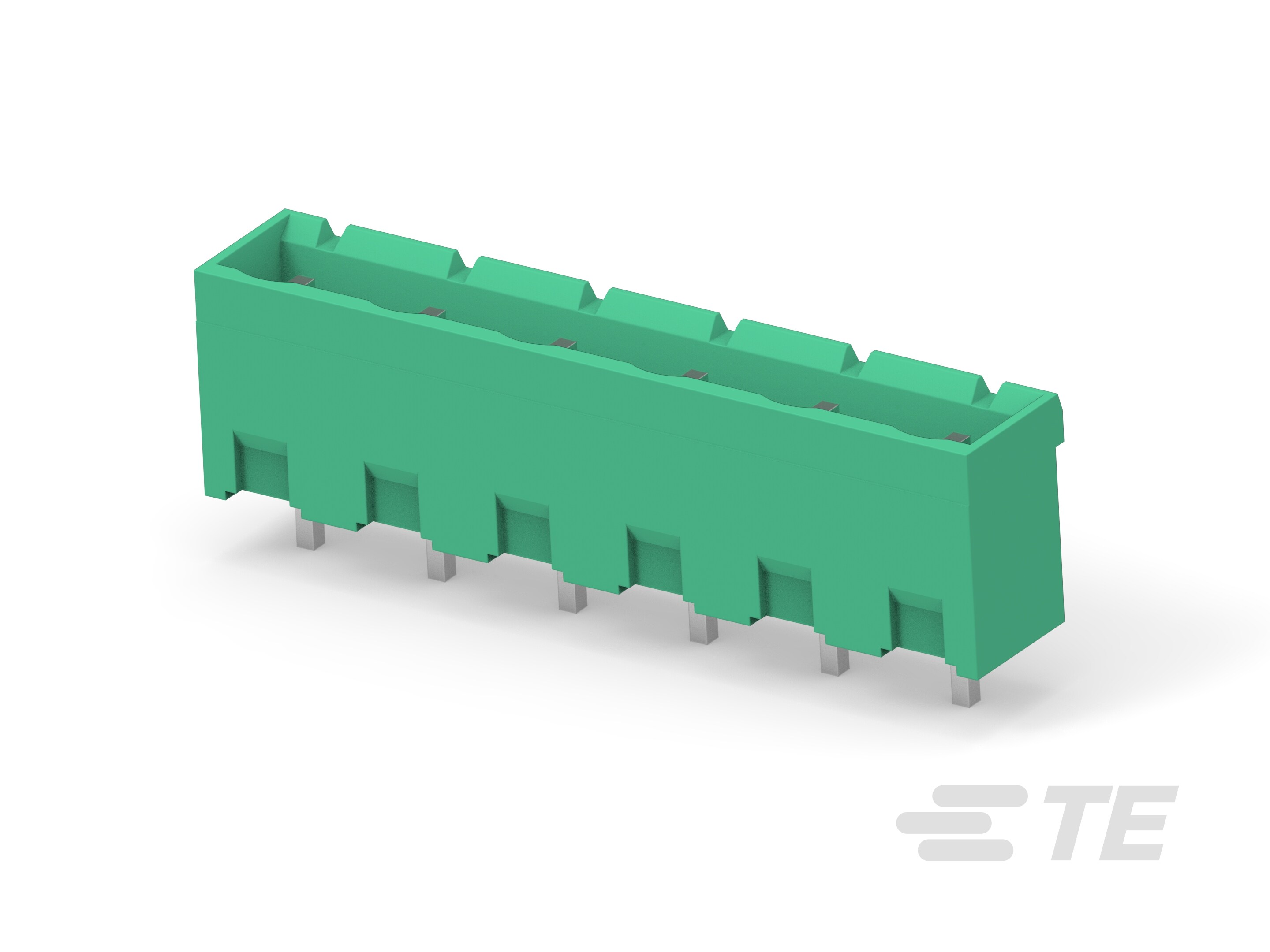

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 6 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | 6 | Green |

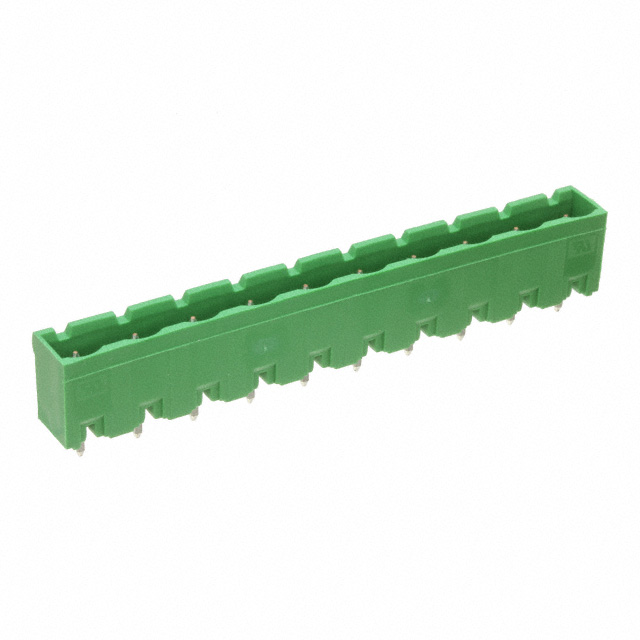

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 10 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | 10 | Green |

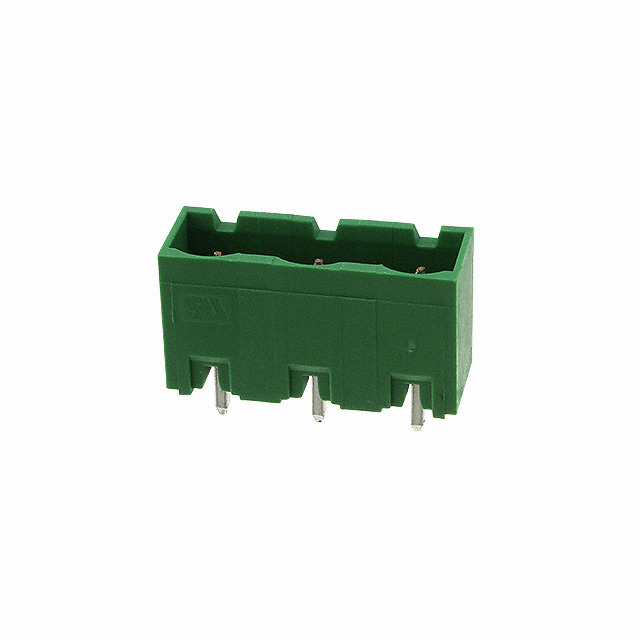

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 3 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | Green | |

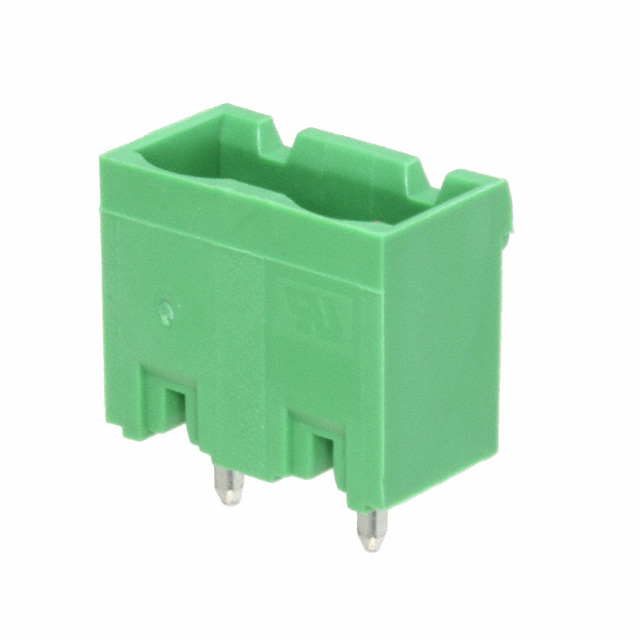

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 2 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | 2 | Green |

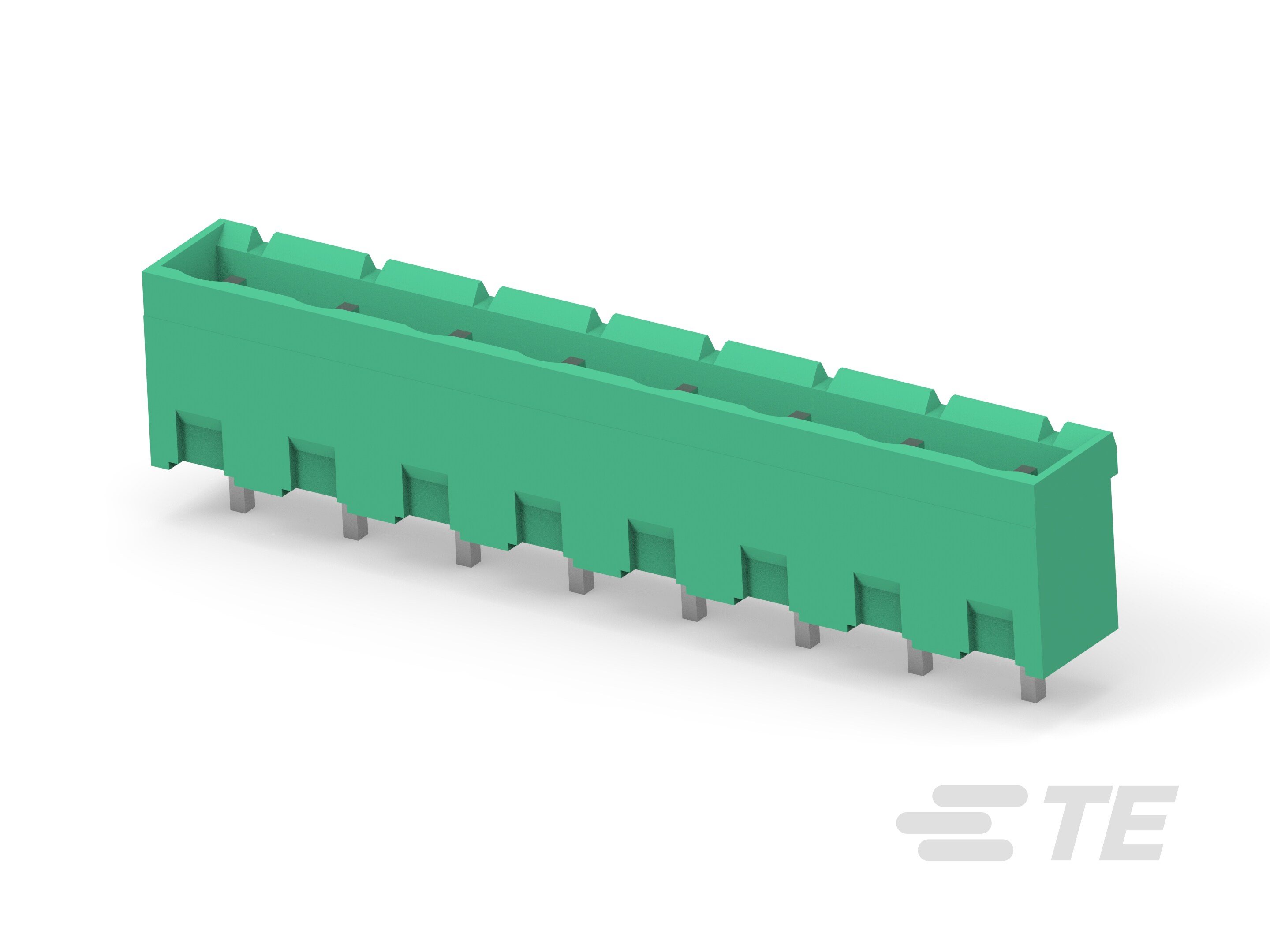

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 8 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | 8 | Green |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 9 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | 9 | Green |

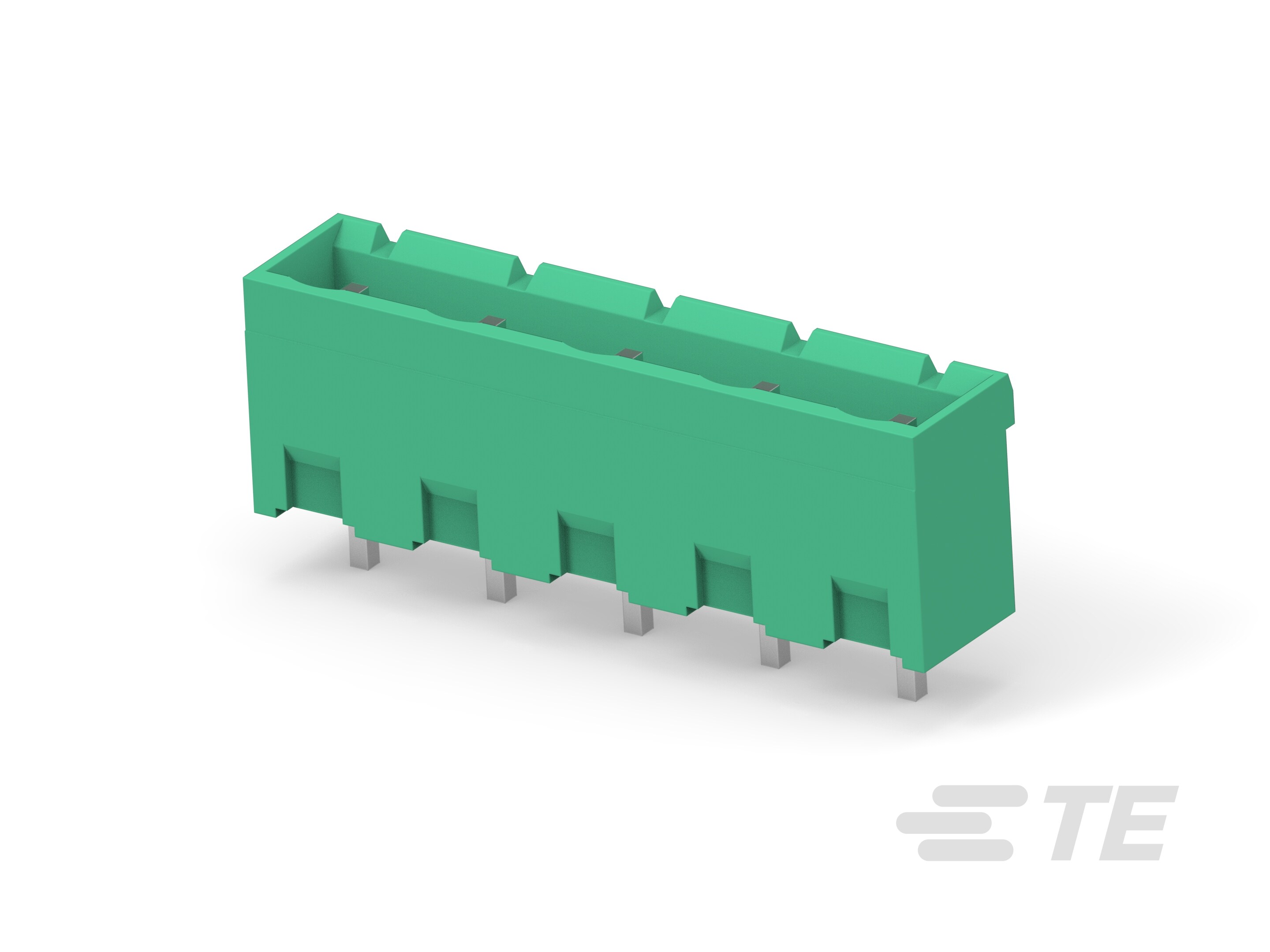

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | Copper Alloy | 0.472 " | 12 mm | UL94 V-0 | Vertical | 0.3 in | 7.62 mm | Solder | Tin | -40 C | 110 °C | 1 | 5 | Header Male Pins Shrouded (4 Side) | 300 V | Through Hole | 5 | Green |
