IRF8304 Series

Manufacturer: INFINEON

Catalog

MOSFET N-CH 30V 28A DIRECTFET

Part	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	FET Type	Mounting Type	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id	Technology	Rds On (Max) @ Id, Vgs	Supplier Device Package	Drain to Source Voltage (Vdss)	Power Dissipation (Max)

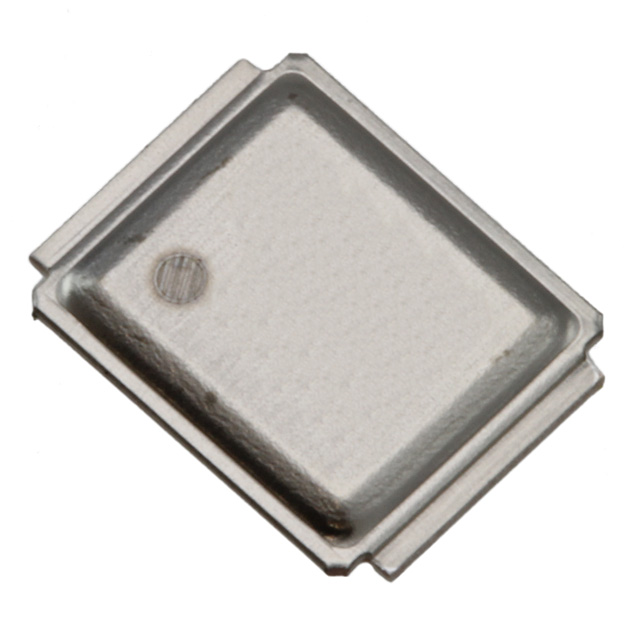

INFINEON IRF8304MTR1PBF	DirectFET™ Isometric MX	4.5 V 10 V	28 A 170 A	N-Channel	Surface Mount	20 V	4700 pF	-40 °C	150 °C	42 nC	2.35 V	MOSFET (Metal Oxide)	2.2 mOhm	DIRECTFET™ MX	30 V	2.8 W 100 W
INFINEON IRF8304MTRPBF	DirectFET™ Isometric MX	4.5 V 10 V	28 A 170 A	N-Channel	Surface Mount	20 V	4700 pF	-40 °C	150 °C	42 nC	2.35 V	MOSFET (Metal Oxide)	2.2 mOhm	DirectFET™ Isometric MX	30 V	2.8 W 100 W
INFINEON IRF8304MTRPBF	DirectFET™ Isometric MX	4.5 V 10 V	28 A 170 A	N-Channel	Surface Mount	20 V	4700 pF	-40 °C	150 °C	42 nC	2.35 V	MOSFET (Metal Oxide)	2.2 mOhm	DirectFET™ Isometric MX	30 V	2.8 W 100 W
