V7-3E1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

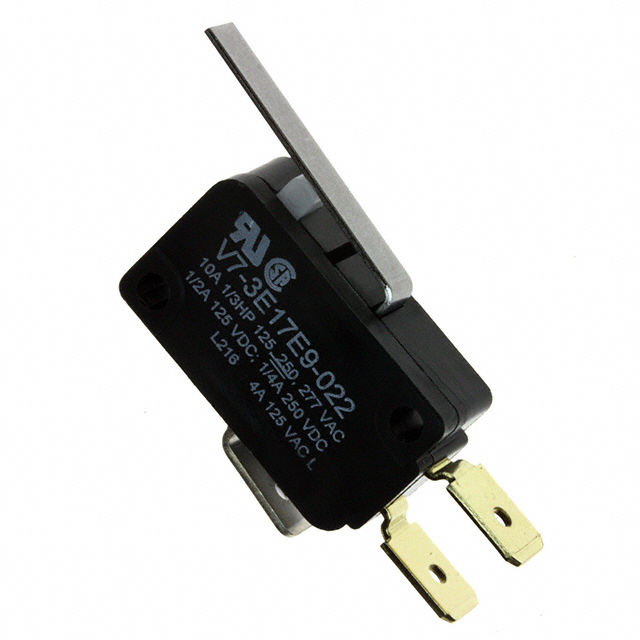

MICROSWITCH, MINIATURE, SHORT LEVER, SPDT, QUICK CONNECT, 10 A, 250 VDC
| Part | Voltage Rating - AC | Current Rating (Amps) | Termination Style | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Differential Travel | Differential Travel | Mechanical Life | Mounting Type | Voltage Rating - DC | Circuit | Operating Position | Operating Position | Release Force | Actuator Type | Operating Force | Pretravel | Pretravel | Electrical Life | Overtravel [custom] | Overtravel [custom] | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 125 V | 0.5 mA 10 A | Quick Connect - 0.250" (6.3mm) | On-Mom | 85 °C | -40 C | 0.76 mm | 0.03 in | 10000000 Cycles | Chassis Mount | 125 VDC | SPDT | 15.3 mm | 0.602 in | 1 gf | Lever Straight | 30 gf | 0.12 in | 3 mm | 100000 Cycles | 0.065 " | 1.7 mm | ||
 Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||

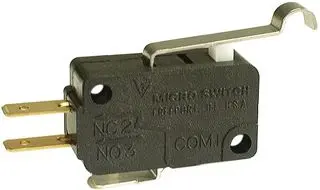

 Honeywell Sensing and Productivity Solutions | 125 V | 0.5 mA 10 A | Quick Connect - 0.250" (6.3mm) | On-Mom | 85 °C | -40 C | 0.76 mm | 0.03 in | 10000000 Cycles | Chassis Mount | 125 VDC | SPDT | 2 gf | Lever Simulated Roller | 33 gf | 0.1 in | 2.5 mm | 100000 Cycles | 0.075 in | 1.9 mm | 18.5 mm | 0.73 in |
