PR81-15 Series

Manufacturer: Polytron

Catalog

DC DC CONVERTER +/-15V 2.25W

Part	Type	Voltage - Isolation	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Package / Case	Power (Watts)	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]

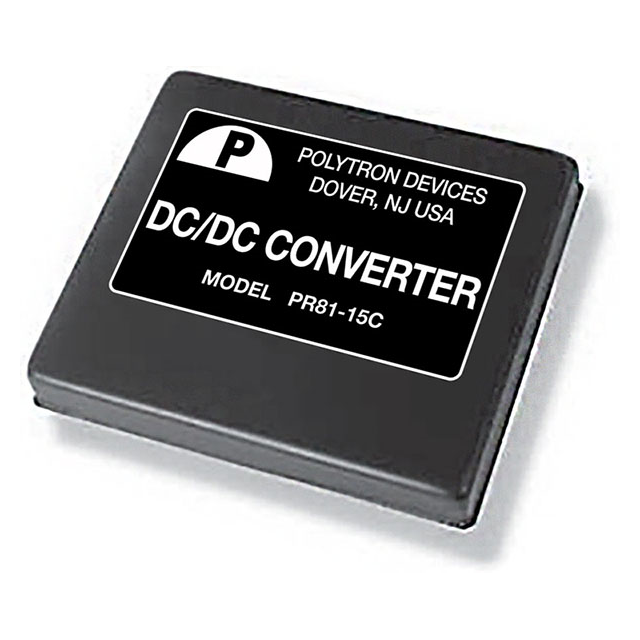

Polytron PR81-15C	Isolated Module	500 V	15 V	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	65 %	5.5 V	71 °C	-25 °C	ITE (Commercial)	150 mA	150 mA	-15 V	5-DIP Module	2.25 W	Through Hole	2	4.5 V
Polytron PR81-15-24	Isolated Module	500 V	15 V	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	65 %	26.4 V	71 °C	-25 °C	ITE (Commercial)	150 mA	150 mA	-15 V	5-DIP Module	2.25 W	Through Hole	2	21.6 V
