OA4715 Series
Manufacturer: ORION FANS
Beta
⌘K
AC AXIAL FAN, 115V, SQUARE, 120 MM, 38 MM, BALL BEARING, 110 CFM
| Part | Current Rating (Amps) | Material - Frame | Material - Blade | Lifetime @ Temp. | Static Pressure | Static Pressure | Termination | Bearing Type | Voltage - Rated | Width [y] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | Noise | Weight [custom] | Weight [custom] | RPM | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

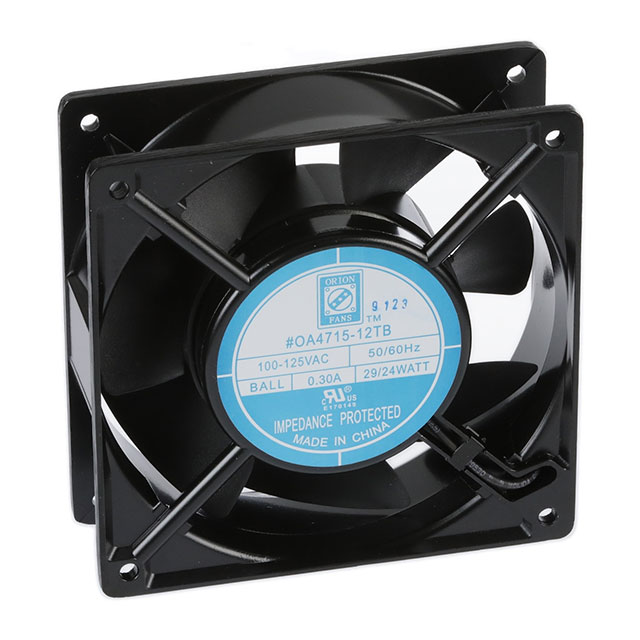

 ORION FANS | 0.3 A | Aluminum | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | 0.37 in H2O | 92.2 Pa | 2 | Ball | 120 VAC | 38 mm | 24 W | 70 °C | -10 °C | Tubeaxial | 44 dB(A) | 544.3 g | 1.2 lbs | 3000 RPM | 120 mm | 120 mm | cURus TUV | 110 CFM | 3.08 m³/min |

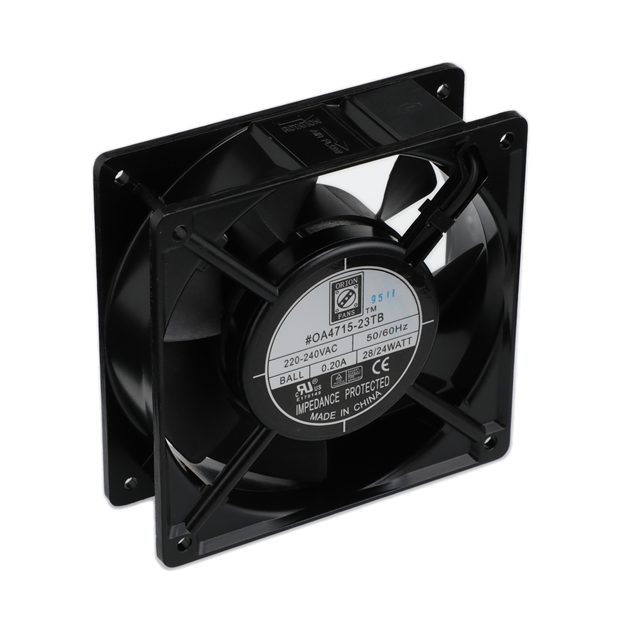

 ORION FANS | 0.23 A | Aluminum | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | 0.37 in H2O | 92.2 Pa | 2 | Ball | 230 VAC | 38 mm | 24 W | 70 °C | -10 °C | Tubeaxial | 44 dB(A) | 544.3 g | 1.2 lbs | 3000 RPM | 120 mm | 120 mm | cURus TUV | 110 CFM | 3.08 m³/min |
