4N32 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

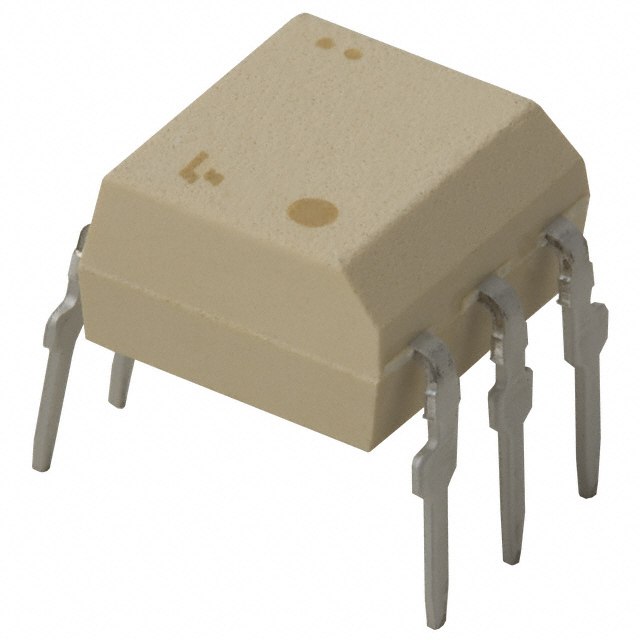

OPTOISO 2.5KV DARL W/BASE 6DIP
| Part | Current - DC Forward (If) (Max) [Max] | Vce Saturation (Max) [Max] | Voltage - Output (Max) [Max] | Supplier Device Package | Input Type | Package / Case | Voltage - Isolation | Number of Channels [custom] | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Transfer Ratio (Min) | Turn On / Turn Off Time (Typ) [Max] | Turn On / Turn Off Time (Typ) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 80 mA | 1 V | 30 V | 6-DIP | DC | 6-DIP (0.300" 7.62mm) | 2500 Vrms | 1 | 100 mA | 1.15 V | Through Hole | 100 °C | -55 C | 500 % | 100 µs | 5 µs | Darlington with Base |
