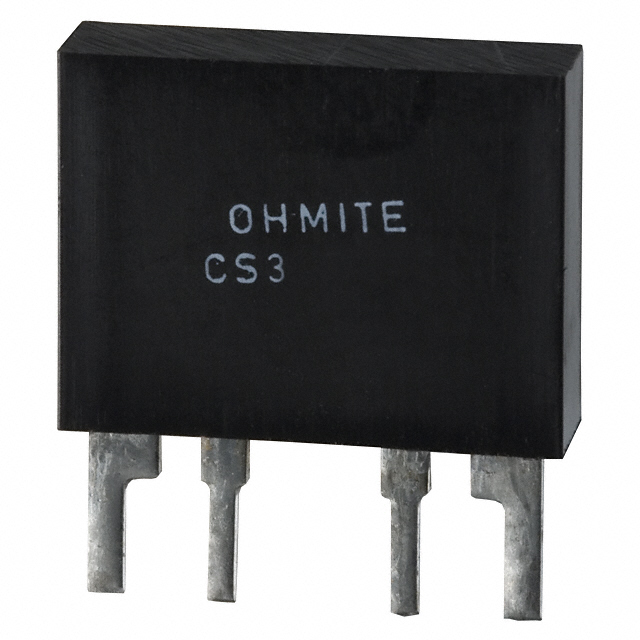

CS3 Series
Manufacturer: Ohmite
Beta
⌘K
CURRENT SENSE RESISTORS - THROUGH HOLE 3WATT .025OHM 1% 4 LEAD NON-INDUCTIVE
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Resistance | Power (Watts) | Number of Terminations | Composition | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 0.654 in | 16.6 mm | Current Sense Moisture Resistant Non-Inductive | 5.35 mm | 0.211 " | 0.854 in | 21.7 mm | 1 % | -55 C | 150 °C | 4-SIP | 25 mOhms | 3 W | 4 | Metal Element | 60 ppm/°C |
 Ohmite | 0.654 in | 16.6 mm | Current Sense Moisture Resistant Non-Inductive | 5.35 mm | 0.211 " | 0.854 in | 21.7 mm | 1 % | -55 C | 150 °C | 4-SIP | 1 mOhms | 3 W | 4 | Metal Element | 60 ppm/°C |
