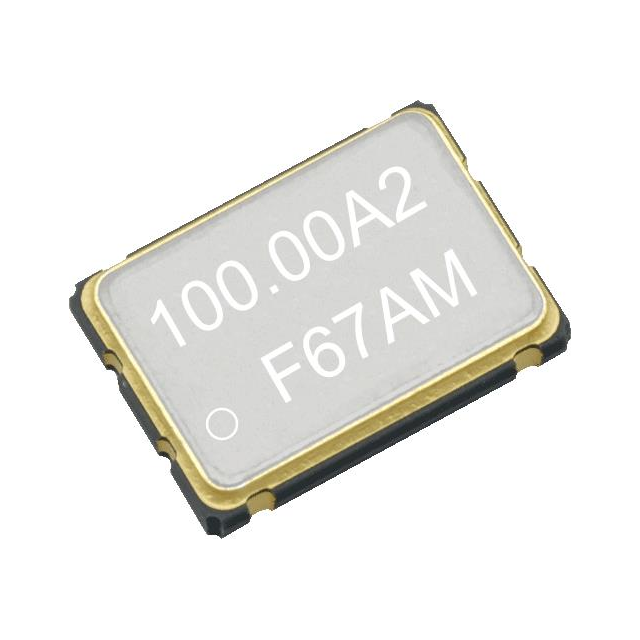

SG-8018CA PR Series
Manufacturer: EPSON
Beta
⌘K
STANDARD CLOCK OSCILLATORS SG-8018CA 1.4400M-TJHSA0: MHZ OSC 1.8V~3.3V +/-50PPM -40~105C ST 1K TR
| Part | Current - Supply (Disable) (Max) | Supplier Device Package | Current - Supply (Max) [Max] | Output | Frequency Stability | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Function | Base Resonator [custom] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current - Supply (Disable) (Max) [Max] | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.1 µA | 4-SMD (7x5) | 3.5 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Standby (Power Down) | Crystal | Surface Mount | 0.055 in | 1.4 mm | |||
4-SMD (7x5) | 8.1 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Enable/Disable | Crystal | Surface Mount | 0.055 in | 1.4 mm | 3.5 mA | 33.848545 MHz | ||
4-SMD (7x5) | 3.5 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Enable/Disable | Crystal | Surface Mount | 0.055 in | 1.4 mm | 9.8304 MHz | |||
1.1 µA | 4-SMD (7x5) | 3.5 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Standby (Power Down) | Crystal | Surface Mount | 0.055 in | 1.4 mm | 2.08 MHz | ||
1.1 µA | 4-SMD (7x5) | 8.1 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Standby (Power Down) | Crystal | Surface Mount | 0.055 in | 1.4 mm | 29.9999 MHz | ||
4-SMD (7x5) | 8.1 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Enable/Disable | Crystal | Surface Mount | 0.055 in | 1.4 mm | 134.1 MHz | |||
1.1 µA | 4-SMD (7x5) | 8.1 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Standby (Power Down) | Crystal | Surface Mount | 0.055 in | 1.4 mm | 51.84 MHz | ||
4-SMD (7x5) | 8.1 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Enable/Disable | Crystal | Surface Mount | 0.055 in | 1.4 mm | 3.5 mA | 156.2578 MHz | ||
4-SMD (7x5) | 3.5 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Enable/Disable | Crystal | Surface Mount | 0.055 in | 1.4 mm | 12.8 MHz | |||
1.1 µA | 4-SMD (7x5) | 8.1 mA | CMOS | 50 ppm | -40 C | 105 ░C | 1.62 V | 3.63 V | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | Standby (Power Down) | Crystal | Surface Mount | 0.055 in | 1.4 mm | 115.2 MHz |
