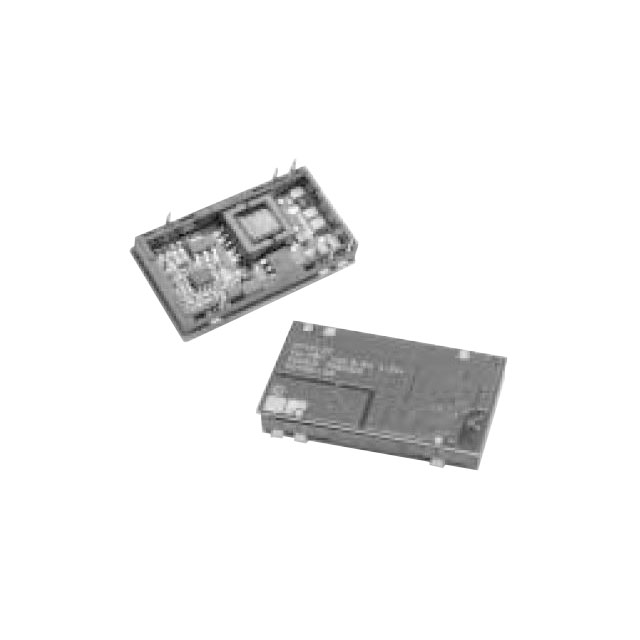

PT4212 Series
Manufacturer: Texas Instruments
Beta
⌘K
MODULE DC-DC 48VIN 1-OUT 3.3V 1.5A 7W 6-PIN DIP MODULE
| Part | Type | Applications | Current - Output (Max) [Max] | Voltage - Output 1 | Features | Mounting Type | Package / Case | Voltage - Isolation | Voltage - Input (Min) [Min] | Number of Outputs | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Isolated Module | ITE (Commercial) | 1.5 A | 3.3 V | Remote On/Off | Through Hole | 6-DIP Module | 1.5 kV | 38 V | 1 | 80 % | 26.9 mm | 7.9 mm | 0.31 in | 1.06 in | 48.3 mm | 1.9 in | 75 V | 5 W | 85 °C | -40 °C | |
Texas Instruments | Isolated Module | ITE (Commercial) | 1.5 A | 3.3 V | Remote On/Off | Surface Mount | 18-SMD Module | 1.5 kV | 38 V | 1 | 80 % | 26.9 mm | 8 mm | 0.32 " | 1.06 in | 48.3 mm | 1.9 in | 75 V | 5 W | 85 °C | -40 °C | 6 Leads |
