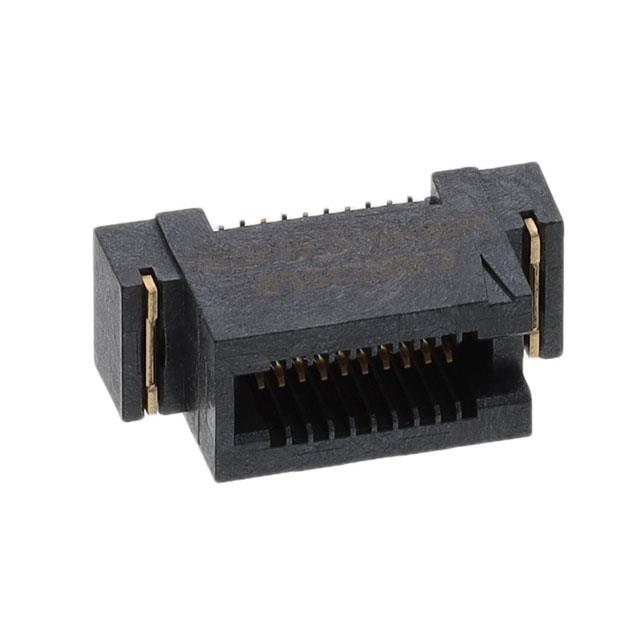

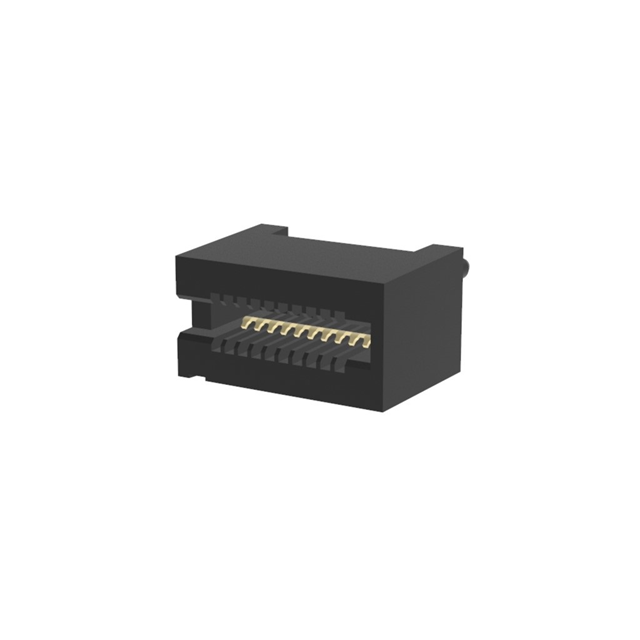

MBB-VM-10 Series
Manufacturer: Amphenol CDI
Beta
⌘K
CONN EDGE DUAL FMALE 20POS 0.031
| Part | Mounting Type | Read Out | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows [custom] | Pitch | Pitch | Features | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Type | Card Thickness | Card Thickness | Contact Type | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CDI | Surface Mount | Dual | Female | 30 Áin | 0.76 Ám | Gold | 2 | 0.8 mm | 0.031 in | Board Guide Solder Retention | -55 C | 125 °C | Black | Non Specified - Dual Edge | 2.36 mm | 0.093 " | Cantilever | Solder | 20 |
 Amphenol CDI | Surface Mount | Dual | Female | 30 Áin | 0.76 Ám | Gold | 2 | 0.8 mm | 0.031 in | Board Guide | -55 C | 125 °C | Black | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Cantilever | Solder | 20 |
 Amphenol CDI | Surface Mount | Dual | Female | 30 Áin | 0.76 Ám | Gold | 2 | 0.8 mm | 0.031 in | Board Guide | -55 C | 125 °C | Black | Non Specified - Dual Edge | 2.36 mm | 0.093 " | Cantilever | Solder | 20 |
Amphenol CDI | Surface Mount | Dual | Female | 30 Áin | 0.76 Ám | Gold | 2 | 0.8 mm | 0.031 in | Board Guide Solder Retention | -55 C | 125 °C | Black | Non Specified - Dual Edge | 2.36 mm | 0.093 " | Cantilever | Solder | 20 |
Amphenol CDI | Surface Mount | Dual | Female | 30 Áin | 0.76 Ám | Gold | 2 | 0.8 mm | 0.031 in | Board Guide | -55 C | 125 °C | Black | Non Specified - Dual Edge | 2.36 mm | 0.093 " | Cantilever | Solder | 20 |
