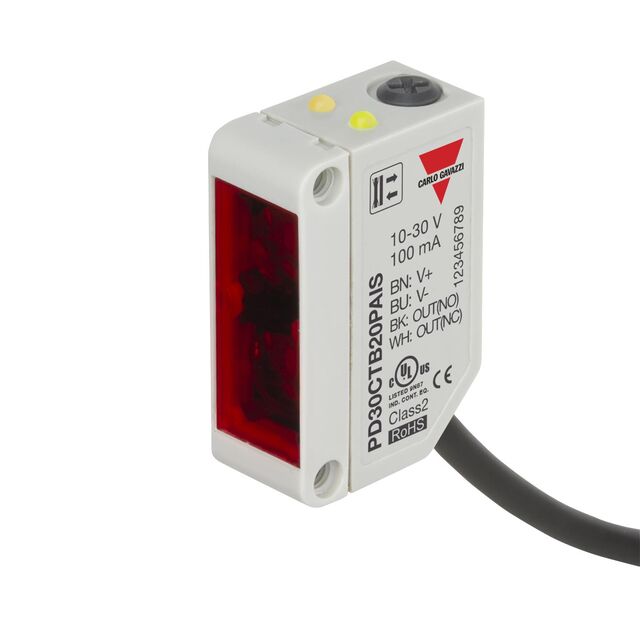

PD30CTB20 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K
SENSOR REFLECTIVE 200MM NPN
| Part | Ingress Protection | Response Time | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance | Sensing Distance | Sensing Method | Cable Length | Cable Length | Operating Temperature [Min] | Operating Temperature [Max] | Adjustment Type | Connection Method | Light Source | Light Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | IP67 | 1 ms | NPN | 10 VDC | 30 VDC | 200 mm | 7.874 in | Diffuse Reflective | 78.74 " | 2 m | -25 °C | 60 °C | Adjustable Potentiometer | Cable | ||
 Carlo Gavazzi Inc. | IP67 | 1 ms | PNP | 10 VDC | 30 VDC | 200 mm | 7.874 in | Diffuse Reflective | 78.74 " | 2 m | -25 °C | 60 °C | Adjustable Potentiometer | Cable | 850 nm | Infrared |
