EVQ-P8 Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Illumination	Actuator Type	Mounting Type	Switch Travel	Circuit	Switch Function	Actuator Length, Right Angle [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Operating Force	Actuator Orientation	Termination Style	Contact Rating @ Voltage [x]	Outline [x]	Outline [y]	Actuator Length, Right Angle

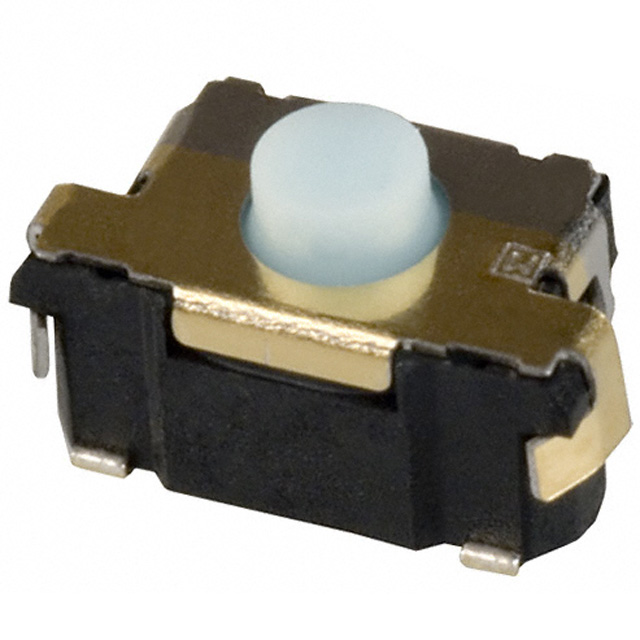

Panasonic Industrial Automation Sales EVQ-P8H03B	Non-Illuminated	Standard	Edge Mount Right Angle	0.7 mm	SPST-NO	Off-Mom	2.5 mm	85 °C	-40 °C	1000000 Cycles	0.25 kgf	Side Actuated	SMD (SMT) Tab	0.02 A 15 VDC	6.2 mm	2.55 mm

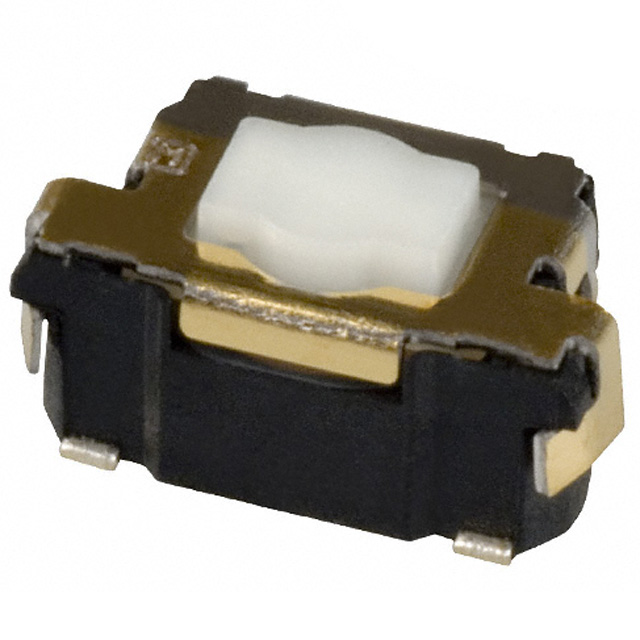

Panasonic Industrial Automation Sales EVQ-P8003M	Non-Illuminated	Rectangular Button	Edge Mount Right Angle	0.25 mm	SPST-NO	Off-Mom		85 °C	-40 °C	1000000 Cycles	100 gf	Side Actuated	SMD (SMT) Tab	0.02 A 15 VDC	6.2 mm	2.55 mm	2.1 mm
Panasonic Industrial Automation Sales EVQ-P8603M	Non-Illuminated	Rectangular Button	Edge Mount Right Angle	0.25 mm	SPST-NO	Off-Mom		85 °C	-40 °C	200000 Cycles	350 gf	Side Actuated	SMD (SMT) Tab	0.02 A 15 VDC	6.2 mm	2.55 mm	2.1 mm
Panasonic Industrial Automation Sales EVQ-P8203M	Non-Illuminated	Rectangular Button	Edge Mount Right Angle	0.25 mm	SPST-NO	Off-Mom		85 °C	-40 °C	1000000 Cycles		Side Actuated	SMD (SMT) Tab	0.02 A 15 VDC	6.2 mm	2.55 mm	2.1 mm
