A-WBH-K001EG Series

Catalog

WIRE-TO-BOARD, HOUSING, 2.00MM,

Part	Color	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Connector Type	Number of Rows	Fastening Type	Number of Positions	Insulation Material

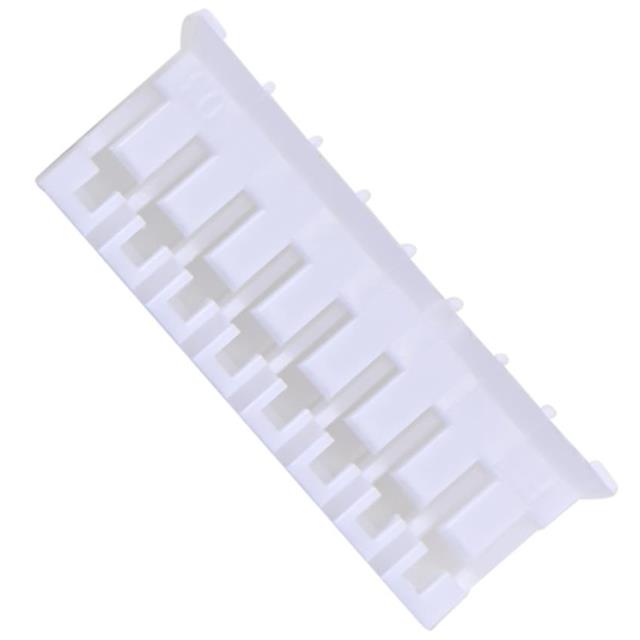

Assmann WSW Components A-WBH-K001EG-15CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	15	Nylon 6/6 Polyamide (PA66)
Assmann WSW Components A-WBH-K001EG-11CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	11	Nylon 6/6 Polyamide (PA66)
Assmann WSW Components A-WBH-K001EG-05CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	5	Nylon 6/6 Polyamide (PA66)
Assmann WSW Components A-WBH-K001EG-06CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	6	Nylon 6/6 Polyamide (PA66)
Assmann WSW Components A-WBH-K001EG-08CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	8	Nylon 6/6 Polyamide (PA66)
Assmann WSW Components A-WBH-K001EG-04CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	4	Nylon 6/6 Polyamide (PA66)
Assmann WSW Components A-WBH-K001EG-14CB01	White	Female Socket	0.079 in	2 mm	85 °C	-25 °C	Crimp	Free Hanging (In-Line)	Plug	1	Locking Ramp	14	Nylon 6/6 Polyamide (PA66)
