FAN5608 Series
Manufacturer: ON Semiconductor
Beta
⌘K
IC LED DRVR RGLTR PWM 20MA 8MLP
| Part | Package / Case | Supplier Device Package | Frequency | Applications | Number of Outputs | Current - Output / Channel [custom] | Type | Voltage - Supply (Max) | Voltage - Output | Internal Switch(s) | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Dimming | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 8-WDFN Exposed Pad | 8-MLP (3x3) | 500 kHz | Backlight | 2 | 20 mA | DC DC Regulator | 5.5 V | 18 V | Step-Up (Boost) | 85 °C | -40 °C | PWM | Surface Mount | |
ON Semiconductor | 8-WDFN Exposed Pad | 8-MLP (3x3) | 500 kHz | Backlight | 2 | 20 mA | DC DC Regulator | 5.5 V | 18 V | Step-Up (Boost) | 85 °C | -40 °C | PWM | Surface Mount | |

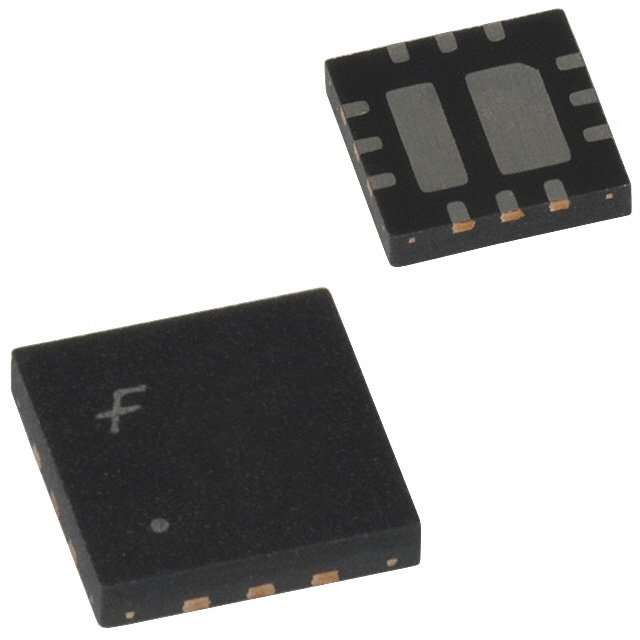

 ON Semiconductor | 12-WQFN Exposed Pad | 12-MLP (4x4) | 500 kHz | Backlight | 2 | 20 mA | DC DC Regulator | 5.5 V | 18 V | Step-Up (Boost) | 85 °C | -40 °C | PWM | Surface Mount | |
ON Semiconductor | 12-WQFN Exposed Pad | 12-MLP (4x4) | 500 kHz | Backlight | 2 | 20 mA | DC DC Regulator | 5.5 V | 18 V | Step-Up (Boost) | 85 °C | -40 °C | PWM | Surface Mount |
