9770 Series
Manufacturer: Belden Inc.
Beta
⌘K

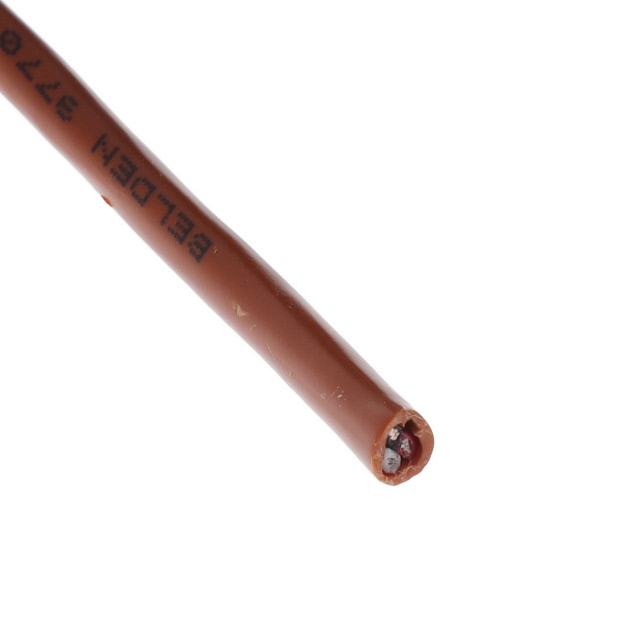

CABLE 3CON 22AWG BROWN SHLD
| Part | Shield Material | Shield Coverage | Features | Shield Type | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Usage | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire | Foil | Poly-Vinyl Chloride (PVC) | Brown | 3 | 0.02 " | 0.508 mm | Polypropylene (PP) | Audio Control Instrumentation | 152.4 m | 500 ft | -20 ░C | 90 °C | Multi-Conductor | 22 AWG | 3.68 mm | 0.145 " | 30 AWG | 7 | Copper Tinned |
