ML60 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 12V 50W

Part	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Current - Output (Max) [Max]	Features	Approval Agency	Voltage - Isolation	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Power (Watts)	Voltage - Output 1	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number

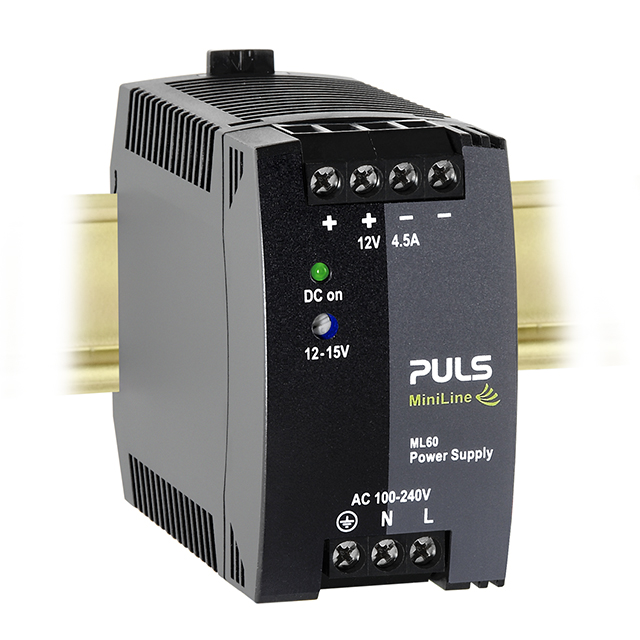

PULS, LP ML60.122	AC	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	ITE (Commercial)	4.5 A	Adjustable Output Load Sharing Universal Input	ABS CSA DNV GL EAC IEC NEC UL	500 V	264 VAC	85 VAC	50 W	12 V	87.6 %	1	70 °C	-10 °C	508 60950-1 61010-2-201 Class 2 Class I Div 2

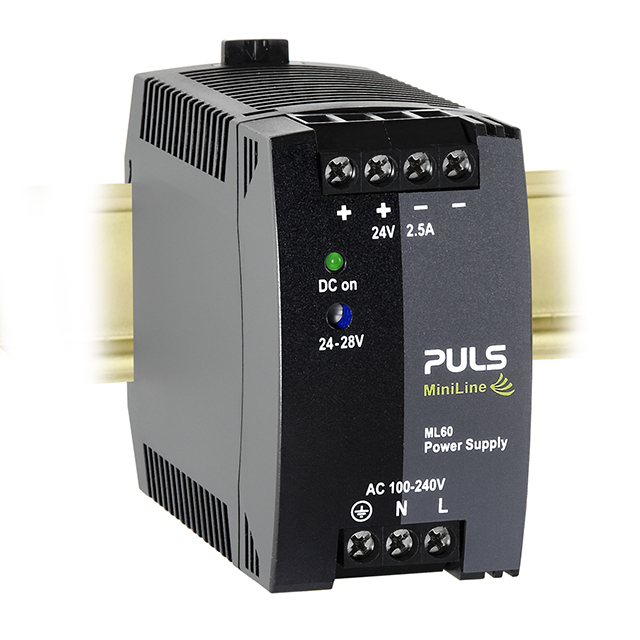

PULS, LP ML60.241	AC	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	ITE (Commercial)	2.5 A	Adjustable Output Load Sharing Universal Input	ABS CSA DNV GL EAC IEC NEC UL	500 V	264 VAC	85 VAC	60 W	24 V	89.7 %	1	70 °C	0 °C	508 60950-1 61010-2-201 Class 2 Class I Div 2
PULS, LP ML60.242	AC	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	ITE (Commercial)	2.5 A	Adjustable Output Load Sharing Universal Input	ABS CSA DNV GL EAC IEC NEC UL	500 V	264 VAC	85 VAC	60 W	24 V	90.4 %	1	70 °C	-10 °C	508 60950-1 61010-2-201 Class 2 Class I Div 2

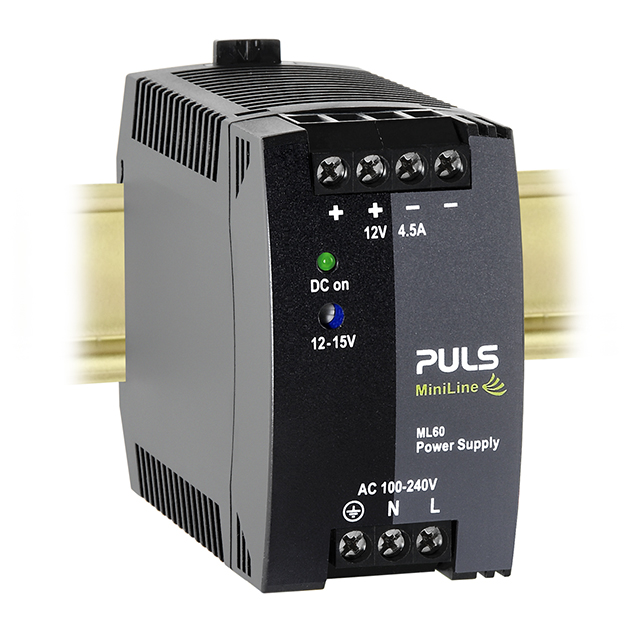

PULS, LP ML60.121	AC	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	ITE (Commercial)	4.5 A	Adjustable Output Load Sharing Universal Input	ABS CSA DNV GL EAC IEC NEC UL	500 V	264 VAC	85 VAC	54 W	12 V	87.2 %	1	70 °C	0 °C	508 60950-1 61010-2-201 Class 2 Class I Div 2
