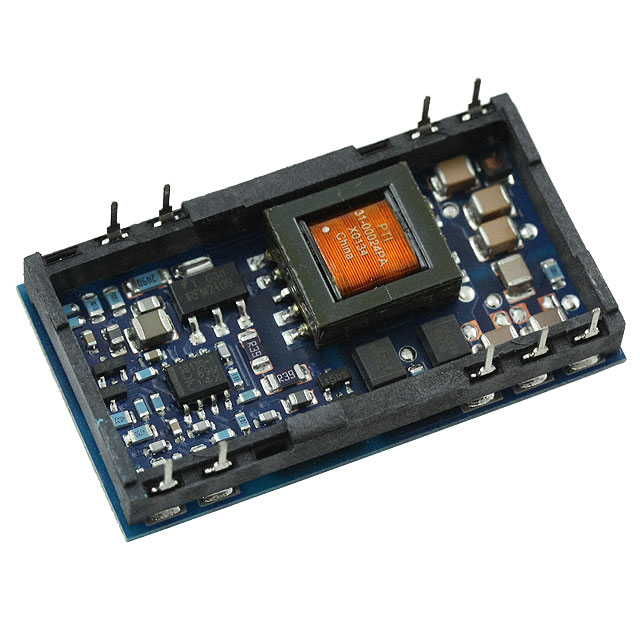

PT4313 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER +/-12V 6W
| Part | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Isolation | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Efficiency | Features | Applications | Package / Case | Type | Number of Outputs | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 38 V | 1.9 in | 8 mm | 48.3 mm | 0.32 " | 30.7 mm | 1.21 in | 1.5 kV | 6 W | 85 °C | -40 °C | 75 V | 12 V | -12 V | 500 mA | 500 mA | 85 % | Remote On/Off UVLO | ITE (Commercial) | 18-SMD Module 9 Leads | Isolated Module | 2 | Surface Mount |
