OL Series

Catalog

TERMINAL BLOCK, HEADER, 3.5 MM, 2 POSITIONS, 2 A, 150 V, THROUGH HOLE VERTICAL

Part	Type	Positions Per Level	Header Orientation	Insulation Height	Insulation Height	Material Flammability Rating	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Housing Material	Termination Style	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Mounting Type	Contact Material	Voltage - UL	Number of Levels	Number of Positions
Amphenol Anytek OL0210000000G	Header Male Pins Unshrouded	2	Vertical	0.094 in	2.4 mm	UL94 V-0	Tin	3.5 mm	0.138 in	Thermoplastic	Solder	3.5 mm	0.138 in	-40 °C	115 °C	2 A	Through Hole	Brass	150 V	1	2

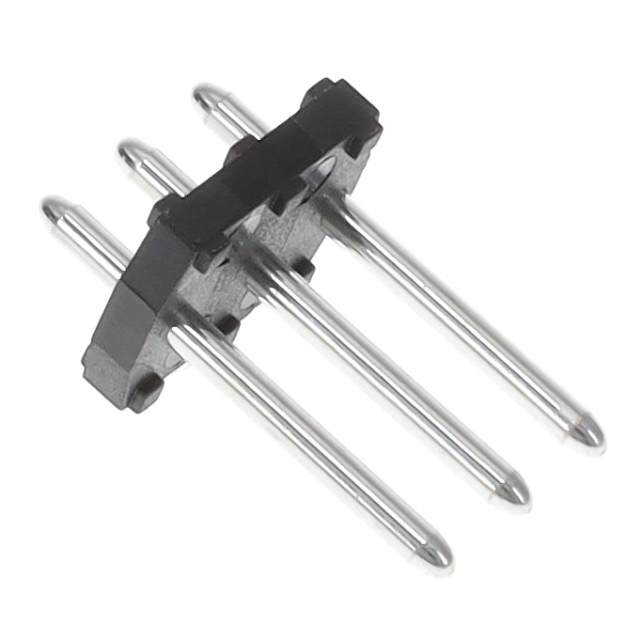

Amphenol Anytek OL0310000000G	Header Male Pins Unshrouded	3	Vertical	0.094 in	2.4 mm	UL94 V-0	Tin	3.5 mm	0.138 in	Thermoplastic	Solder	3.5 mm	0.138 in	-40 °C	115 °C	2 A	Through Hole	Brass	150 V	1
Amphenol Anytek OL0610000000G	Header Male Pins Unshrouded	6	Vertical	0.094 in	2.4 mm	UL94 V-0	Tin	3.5 mm	0.138 in	Thermoplastic	Solder	3.5 mm	0.138 in	-40 °C	115 °C	2 A	Through Hole	Brass	150 V	1	6
