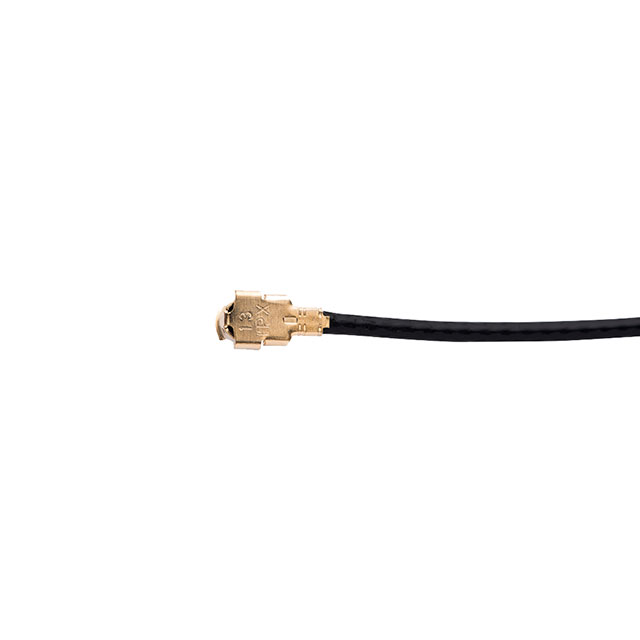

214386 Series
2.4GHz / 5GHz Wi-Fi/Bluetooth External Antenna, Compatible with U.FL / I-PEX MHF Connectors, Black
Manufacturer: Molex
Catalog
2.4GHz / 5GHz Wi-Fi/Bluetooth External Antenna, Compatible with U.FL / I-PEX MHF Connectors, Black
Beta
⌘K
2.4GHz / 5GHz Wi-Fi/Bluetooth External Antenna, Compatible with U.FL / I-PEX MHF Connectors, Black
2.4GHz / 5GHz Wi-Fi/Bluetooth External Antenna, Compatible with U.FL / I-PEX MHF Connectors, Black
2.4GHz / 5GHz Wi-Fi/Bluetooth External Antenna, Compatible with U.FL / I-PEX MHF Connectors, Black
| Part | RF Family/Standard | Mounting Type | Number of Bands | Applications | Gain | Height (Max) [Max] | Height (Max) [Max] | Termination | Frequency Group | Frequency Group [Min] | Frequency Group [Max] | Frequency (Center/Band) | Antenna Type | Features | Features | Frequency Range [Max] | Frequency Range [Min] | Return Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 802.15.4 Bluetooth WiFi | Connector Mount | 2 | Bluetooth Wi-Fi Zigbee™ | 3.3 dBi 5.2 dBi | 4.094 in | 104 mm | I-PEX MHF | 4 GHz | 2 GHz | 3 GHz | 2.45 GHz 5.5 GHz | Tilt Whip | Cable | 100 mm | 2.5 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | -10 dB |
